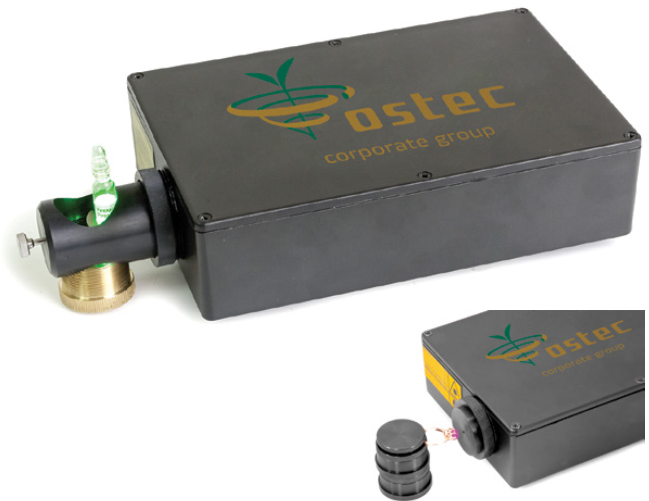

RAMOS RA532 Raman Analyzer

RAMOS RA532 is a unique instrument that combines the advantage of a portable probe system with the performance of a highly specified laboratory instrument. It is the perfect choice for Raman analyses where high-quality data is essential.




Features


  • Superior sensitivity and low noise
  • Non-contact real-time identification
  • Analysis of ultra-low concentrations based on SERS proprietary technology

Benefits


  • Precisely tailored to customer’s requirements
  • Fast and trustworthy results
  • Portable device
  • Easy to use

Applications


  • Semiconductor & Solar Industry
  • Food & Agriculture Industry
  • Pharmaceutical Industry
  • Geology and Mineralogy
  • Environmental Science
  • Chemical Processes
  • Medical Diagnosis
  • Forensic Analysis
  • Gemology

Screenshot_3.png Raman shift (cm-1)
Screenshot_4.pngRaman shift (cm-1)

Real-time and accurate identification of an unknown substance occurs by comparing its unique Raman spectrum of molecular vibrations (molecular “fingerprint”) to Raman spectra of reference substances stored in a spectral database. RAMOS RA532 identifies through walls of sealed bags, transparent bottles, vials, and ampoules. The ease of use, single-hand operation, small size and weight of RAMOS RA532 allows testing chemical substances at the point of receipt, use, or delivery. Results are displayed within seconds and can be accessed via an intuitive user interface. Data are retrieved remotely via USB port.


RAMOS RA532 utilizes a 20 (30 optional) μm entrance slit, 1200 gr/mm holographic grating, cutting-edge low pass filter, as well as a 30 mW single mode laser emitting at 532 nm to provide high accuracy Raman and luminescent measurements in a broad spectral range from 100 to 6000 cm-1. The spectrometer has no moving parts which yields excellent wavelength reproducibility.
RAMOS RA532 comes with a low-noise 3648-element linear-array CCD detector operating at room temperature and a state of the art system for suppressing the Rayleigh scattering signal and the straight laser light. RAMOS RA532 has an onboard programmable microcontroller that provides flexibility in controlling the spectrometer and accessories.

Features

  • RAMOS RA532 identifies substances and tags contactless through a transparent and colored glass or translucent plastic packaging that allows total quality inspection (instead of sample inspection)

  • RAMOS RA532 detects substances and tags at least several times superior to the sensitivity available on the market samples and do not require any special skills for a user

  • RAMOS RA532 delivered reliable results within seconds

Wavelenght, Å
