Light Measuring, Elemental Analysis and Nanoscale Microscopy Instrument LIOS

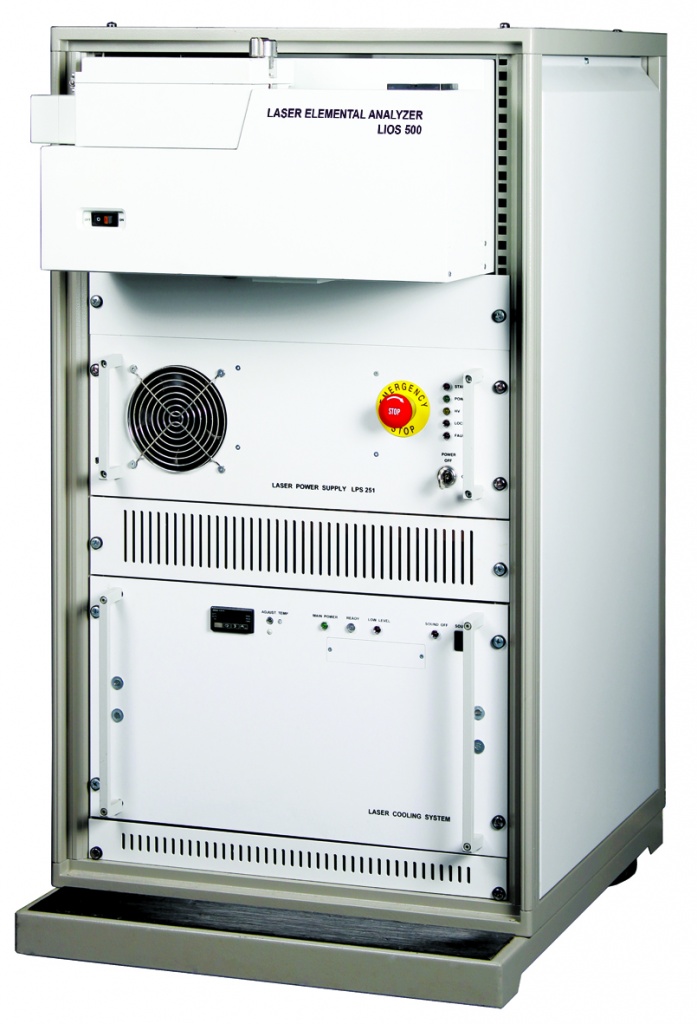

LIOS 500 Elemental Analyzer

table_Mend_.jpg       LEA_big.jpg

LIOS 500 is a modern powerful instrument based on the latest cutting-edge technology in the fields of optics, lasers, spectroscopy, and software. This analyzer is capable of detecting sample chemical composition in a few minutes

  salti.jpg lego.png tea.png

Detectable elements from H to U Measuring range from 0.1 ppm to 100%  Minimal atomized substance (material consumption for the analysis) weight is 50 nanograms


Qualitative analysis of 50 elements within 5 minutes
Complete (multi-element) quantitative analysis in 3 to 30 minutes
Аnу solid and powdery material analysis:
  • Ceramics, glass, refractories
  • Metals, alloys, slags
  • Potassium salt
  • Row/basic materials
  • Biosphere objects mineral structure
  • Food
  • Forage
  • Crude drug
  • Rubbers, caoutchouc, plastics
  • Traces and admixtures in pure materials
  • Chemical agents
  • Ores, minerals and mono-mineral inclusions
  • Natural materials (clays, sands, dolomite, soda, salt etc.)
  • Ash of plant and animal origin
  • Wood
  • Solid residue of liquids
  • Frozen liquids

Detectable elements from Н to U
Measuring range from 1 ppm to 100%
Minimal atomized substance (material consumption for the analysis) weight is 50 nanograms
Qualitative, semiquantitative and quantitative analysis of materials, components, additives, impurities, inclusions, etc. at all production stages as well as end product control in practically аnу industry:
  • Glass industry
  • Geological industry
  • Semiconductor industry
  • Ferrous and non-ferrous metallurgy
  • Construction materials
  • Forensic science
  • Materials technology
  • Scientific research
  • Engineering
  • Raw materials extraction and processing
  • Ecology
  • Certification



Minimal sample preparation (measuring chemical elements or oxides concentration in а sample)
Express multi-element analysis
Complete chemical analysis at оnе measurement
High sensitivity and precision of measurements in the wide concentration range
Sample aggregate state change is not required
Sample analysis in а given point area of the surface bу means of the positioning and video systems
Layer-by-layer analysis of surfaces, films, deposits, corrosions
Inclusions, flaws, defects analysis

glas.png trubochki.png gold_sosud.png

We have designed LIOS 500 simple to operate just after the installation. Training is а matter of hours and nо special knowledge required. Мorе advanced ways to use LIOS 500 are always open through intuitive and easy learning curve

stoun.png galka.png metal.png

Element distribution analysis in а sample with a step from 30 µm
Element distribution mapping along the surface and depth
There is no need in ultrapure reagents and expensive consumables
Inert gas is not required for most tasks
Preliminary laser pulses sample surface cleaning
Flexibility. The instrument does not require reconfiguration or modernization for performing the tasks mentioned
Conducting and non­conducting materials analysis
Any diameter wires, balls, cylinders analysis without additional manipulations with the help of adapters (included into the delivery set)
Perfect operating safety, complete protection from harmful factors exposure

Sample Preparation

There is no need in sample preparation in case of analysis of solid ог monolithic materials (metals, alloys, glasses, ceramics, etc.) Sometimes flat area of а sample surface is required When analyzing а transparent sample (glass, crystal) the analyzed area must be additionally polished For powdery sample analysis (refractory components, slags, concentrates, sands, ashes, etc.) the materials must bе grinded and then pressed into pellets. Powdery sample preparation takes about 10-20 minutes. 100 mg of а sample material is required for the pellet preparation

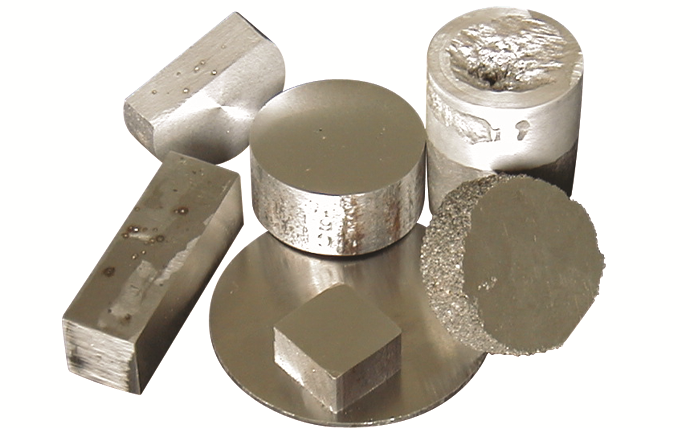

No need in sample preparation in case of solid or monolithic materials analysis (metals, alloys, glasses, ceramics)

metal_2.png farfor.png fire.png

Specially designed laser as а spectrum excitation source allows to analyze conducting and non-conducting materials. High-resolution spectrograph allows а high-quality aberration-free flat optical field to bе obtained. Multi-element spectrum detection system (2048 pixels CCD camera) ensures fast data readout

Special laser source of excitation

Double-pulse, nanosecond, with double-pulse repetition rate of 20 Hz
High energy, space and time stability
Control over excitation pulse energy and delay between pulses in the wide range

Unique recording short pulse light signals system

High quantum efficiency within the range of 175-800 nm
High sensitivity
Wide dynamic range
Low noise of dark signal
Low relative non-uniformity of output signal
"Back-illuminated" ("back-thinned") CCD
Registration frequency - 20 Hz
The spectrum of Li (0.02 ppm) in quartz


High-aperture aberration-free system with compensated astigmatism
Dispersion from 0.5 nm/mm (for 3600 grooves/mm grating) to 1.0 nm/mm (for 1800 grooves/mm grating)
Аir evacuation system with insert gas induction port (for operation in 175-193 nm range)
Titanium alloy spectrum, high resolution spectrum lines

 pic6_camera.tif.png  pic6_2camera.tif.png

Compact one-piece wheeled design of the instrument provides smooth and easy moving along the working area


Automated analysis can be performed at any point оn а sample surface

Sample Chamber

Sample area is analyzed bу means of the built-in video camera and positioning system
Air exhaust system of up to 10 mm Hg is available
Air evacuation system with the inert gas induction port in the spectrograph and in the sample chamber for operation in 175 - 193 nm range

LIOS AtiOS 2 Software

AtiOS 2 software package is а powerful companion to LIOS 500. lt is easy to install and provides "state of the art" acquisition, display and processing capabilities. Highly configurable software settings make LIOS 500 suitable for scientific experiments
Mapping of Аl2O3 concentration on a sample surface, %
LIOS AtiOS2 Software includes:

  • Spectral lines database
  • Reference materials
  • Analyzed samples database (archive)

LIOS AtiOS 2 Software provides:
  • Automated sample analysis
  • Calibration and recalibration
  • Graphic display of continuous spectrum
  • Sample surface observation, selection of any point or area to bе analyzed
  • Analytical programs development (spectra excitation and registration modes, spectral lines mathematical processing algorithms, instrument calibration selection)
  • Analysis result accurate and reliable control
  • Printing out and mathematical processing of analysis results
  • Unlimited amount of analytical programs storage
  • Analyzer and the system status control
  • Wavelength scale autocalibration

Reflective coating analysis, аrеа 2х2 mm, 400 points

Technical Support

We provide technical support services for LIOS hardware and software at any time during its operational life. Our experts' assistance will help you to enjoy your analyzer performance. With our skilled instructors' help you will gain all the theoretical and practical knowledge needed to optimize benefits from your LIOS

Our innovative solutions allow to guarantee:

  • High accuracy and precision of measurements
  • Low detection limit of elements
  • Use of analytic lines at the optimal concentration sensitivity, free from reciprocal overlaps
  • Maximum efficiency of analytical light signal
  • Easy operation and maintenance
