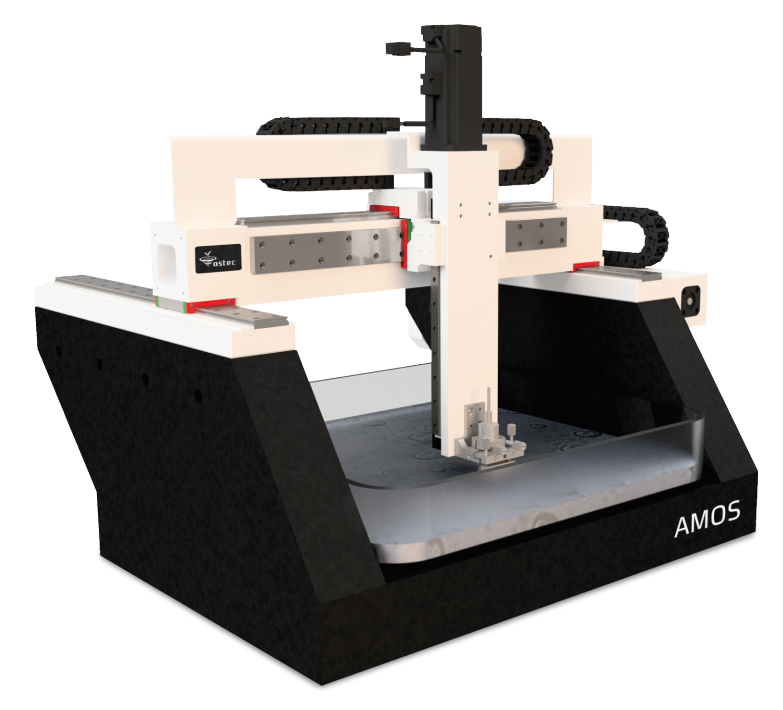

Scanning acoustic microscope AMOS


Mechanical parameters:


  • XYZ resolution: 1 μm
  • Working area: 400x400x200 mm
  • Travel speed: 500 mm/s
  • Scanning speed: from 20 mm/s at 50 MHz frequency
  • Set of adjustable trays with sample holders

Applications:


Screenshot_1.png Real-time A-scan & A-scan Capture
B-scan & SLICE
Threshold Mapping (post processing)
Frequency Domain Imaging (FFT)
C-scan with Multi-gate SALI & SALI Groups
Cluster Analysis (post processing)
Advanced Time-of-Flight & Thickness Measurements
Scan Math Before and After Reflow Characterization

3D Imaging
Void Gating (real time)

Available modes:



A-Scan
     Patch
     Scan
 Top
  Scan
Counterfeit
Detection
B-Scan
Focus B
Sub B
Cross B
  C-Scan
    Dual
    Gate
  SALI
SALI
Groups
TX-Scan Concurrent
PE/TX
D-Scan
3D
