The Most Advanced Vibration Absorption Systems AVOS ST

The Most Advanced Vibration Absorption Systems AVOS ST

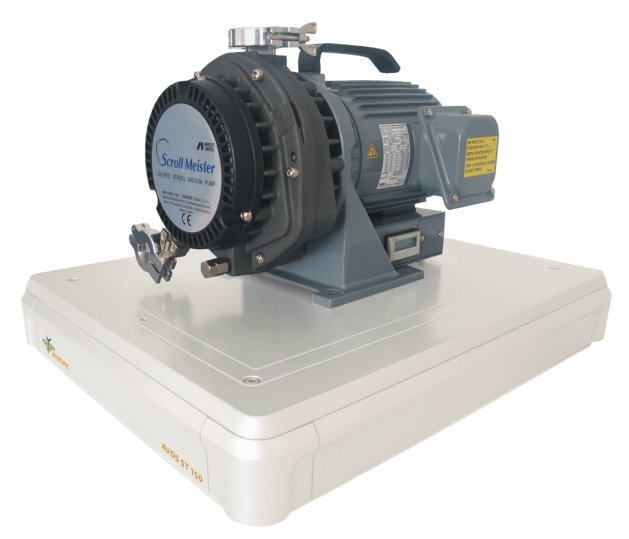

A lightweight and compact vibration absorption systems allow to significantly  reduce  unwanted  vibrations  translated  to  working environment from noisy pumps, compressors, etc. Developed by engineers, physicists and leading industry consultants with expertise in vibration isolation and precision instruments, AVOS ST systems significantly absorb vibrations and disturbances.

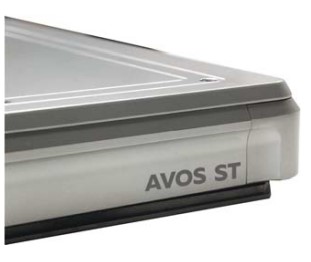

AVOS ST Products Line – Vibration Absorption Systems



AVOS ST xxx

 Products Line

Device

 Capabilities

Device

 Dimensions (mm)

Load

 Capacity (kg)

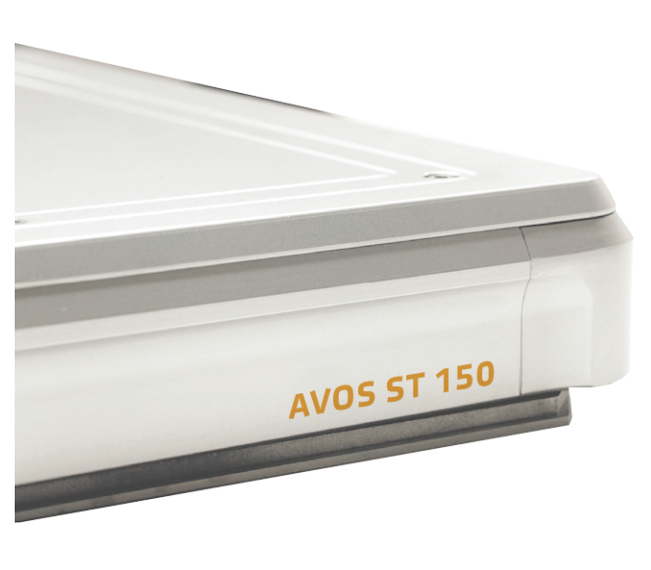

ST 150  Vibration
absorption system
400x500x80
20-150
ST 180  Vibration
absorption system
500x600x80  20-180
ST 200  Vibration
absorption system
600x800x80  20-200
ST 1200    Vibration absorption
system stationed on 4
independent isolators
200x200x75
single isolator
300-1200
ST 2000    Vibration absorption
system stationed on 4
independent isolators
200x200x75
single isolator
800-2000

ST 4000

Vibration absorption
system stationed on 8
independent isolators

200x200x75
single isolator

800-4000








Performance and Specifications


 Available option: 4 isolators in system   Total available load: 2000 kg
Available option: 8 isolators in system
 Total available load: 4000 kg

Available option: single isolator

Available load: up to 200 kg

Highly damped respond to step and oscillating inputs

Patented architecture
 Simple installation - No tuning require

Application-specific designs/products/capabilities to meet your needs

Ability to support massive machines, tools, systems
