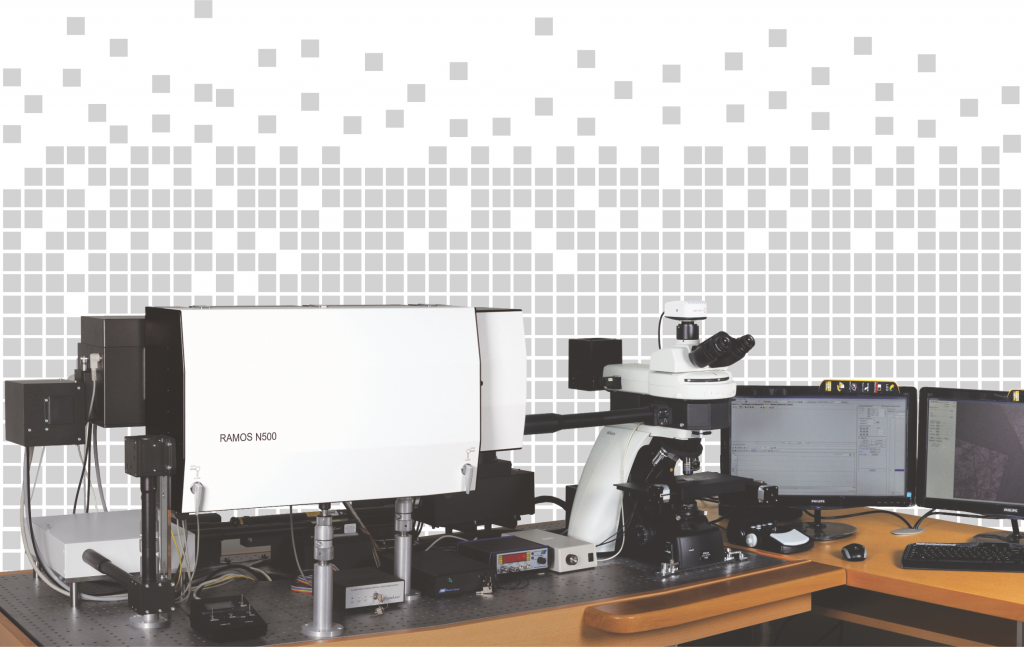

RAMOS N500


3D Scanning Laser Raman Microscope





Simultaneous / Multifunctional Analysis


  • Raman Measurements

  • Luminescence Measurements

  • Laser Reflection & Transmission Measurements

  • Spectral and Polarization measurements

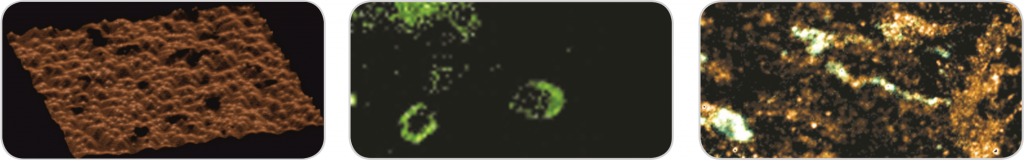

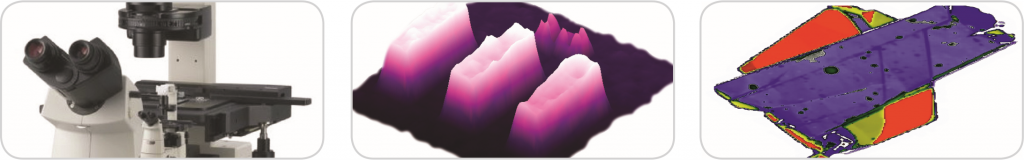

3D high-contrast images in reflected light

3D confocal Raman measurements

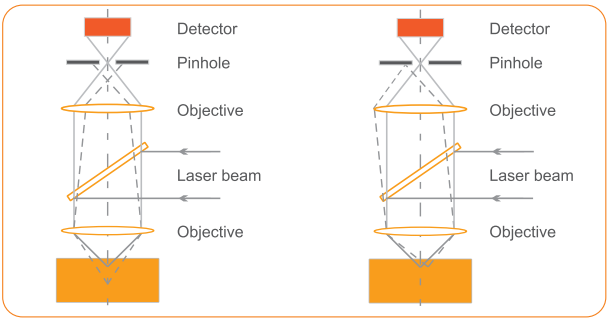

Confocal Detection Principle


Confocal Laser Scanning Raman Microscope has become a widely recognized research instrument in recent years. Confocal microscopy offers several advantages over conventional wide-field optical microscopy, including the ability to control depth of field, elimination or reduction of background information away from the focal plane and the capability to collect serial optical sections from thick samples. The image of the extended sample is generated by scanning the focused laser beam across a defined area.



The pinhole aperture rejects the residual scattered rays originated from any
out-of-focus points on a sample.

We have created the instrument that is right for you



High spectral resolution



Spatial resolution: less than 500 nm (Z), 200 nm (X, Y)

Spectral resolution: ~ 0.25 cm-1

Wavelength accuracy in spectrum with CCD detector: 0.005 nm (1800 l / mm)


Applications


Semiconductors


High spatial resolution Raman confocal microscopy can provide information on dopant concentrations and stress distribution in semiconductor materials.

Biology

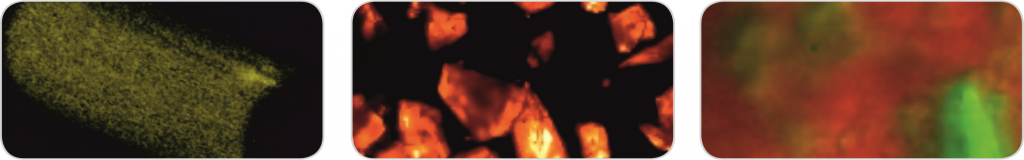

Raman spectroscopy allows easy visualization of cellular components with minimum perturbation.

Pharmaceutics


Confocal Raman spectroscopy allows chemical compounds and molecular conformers in various drugs to be identified and their distribution mapped with high spatial resolution.

Geology


Confocal Raman microscopy is an excellent technique for characterization of minerals, detection of components distribution and their phase transitions.

Cosmetology


Confocal Raman microspectroscopy is a promising technique which enables measuring the skin care products as well as their penetration capability.

Forensics


Application areas include identification of unknown substances, different types of fibers, glasses, paints, explosive materials, inks, narcotic and toxic substances, proof of authenticity of documents.

Material science


Confocal Raman offers excellent spatial resolution for characterization of materials (superconductor, polymers, coatings, composites, carbon nanotubes, graphene, etc.).

Heritage and Art, Gemology


Raman spectroscopy allows identification of pigments and binders used in paintings. The spectroscopic analysis of archaeological samples (ceramics, glasses, etc.) provides information on their origin and history. Raman technique allows rapid identification of colored stones, natural and synthetic diamonds.

and many more…

Raman megapixel image for 3 sec

Fully automated system with up to 5 integrated lasers



High spatial resolution and sensitivity


Major features

The highest spectral and imaging resolution with specially designed spectrometer


Specially designed imaging spectrometer incorporates many features that make it ideal for confocal Raman measurements. The image of pinhole is projected to a multichannel detector without any aberrations.

The smaller amount of illuminated pixels on the CCD matrix leads to the smaller dark counts and the higher spectral resolution.

Spectral resolution of RAMOS N500 with an Echelle grating is 0.25 cm-1.

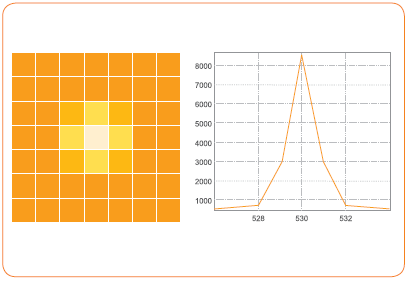

Spectral image of the pinhole on the CCD camera (aberration free).
CCD pixel size is 12 μm.


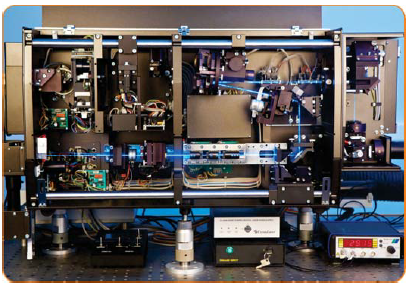

High optical throughput for enhanced sensitivity

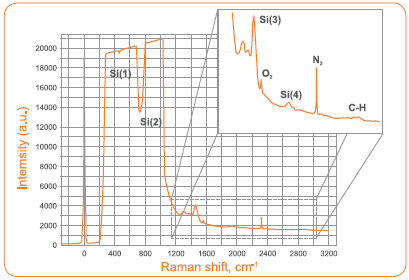

The 4th order Silicon band at 1940 cm-1  can be observed in less than one minute using a low intensity laser.

2D / 3D images can be acquired rapidly.


Silicon 4th order sensitivity.


Fully automated


People with little or no experience in Raman spectroscopy can use RAMOS N500. The system is highly modular
and fully automated. Up to 5 lasers can be used.

The lasers can be switched from one to another by just one click.

Motorized control for laser power, beam diameter, polarization orientation, pinhole size and grating is provided.




Low frequency Raman shift  measurements (down to 5 cm-1) with Bragg Super-Notch filters


True confocal design

High spatial resolution


Laser Raman microscope RAMOS N500 can achieve:
  • lateral resolution close to theoretical limitation


Laser

 wavelength, nm

Objective

XY - plane

 resolution, nm

488  100x, NA = 0.9  250
532  100x, NA = 0.9  275
633  100x, NA = 0.9  320
785  100x, NA = 0.9  390

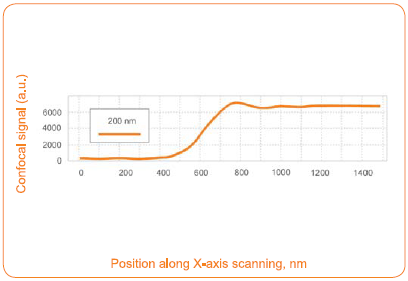

RAMOS N500 can take high definition Raman images (λ = 514 nm, 100x, NA = 1.4).


  • axial resolution (in depth direction, 100x, NA = 0.9)

Laser

 wavelength, nm

Z (axial)

 resolution, nm

488 520
532 560
633 660
785 800

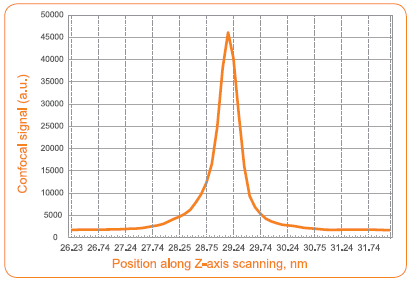

Axial resolution of 450 nm (λ = 488 nm, 100x, NA = 0.95).


Wide Raman shift measurement range


Laser

 wavelength, nm

 Wavenumber

range, cm-1

325 125 - 8000
355 115 - 8000
473 80 - 6000
532 50 - 8000
633 50 - 6000
785 40 - 2800

Low frequency Raman shift measurement range can be expanded using Bragg notch filters.

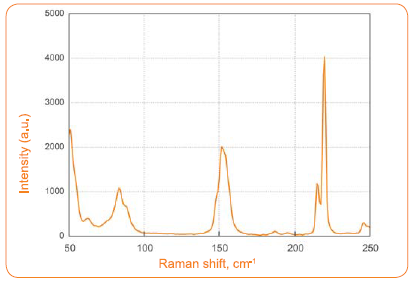

Low frequency Raman bands of sulfur (lower than 250 cm -1 , 633 nm laser).


Megapixel Raman image for 3 sec

True confocal design

High spatial resolution


3D scanning laser confocal Raman microscope RAMOS N500 provides the acquisition of two images within a single scan:
a Rayleigh image (using laser light reflected from a sample) and a spectral image by Raman scattering.

Ultrafast imaging option allows to get confocal image in 3 sec (3 μs/pixel).

RAMOS N500 uses fast beam scanning by galvano mirrors.

Layout of galvano mirror scanner module allows mapping with no intensity losses from image center to its edges.

content-img.png content-img.png

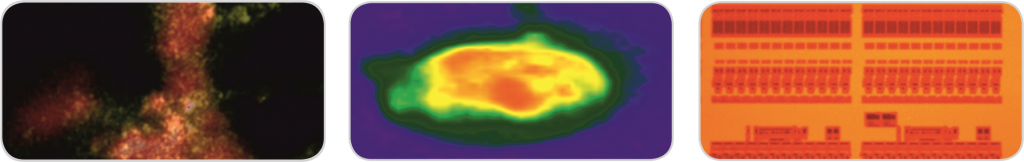

Rayleigh (1000 x 1000 pixels, time per 1 pixel is 3 μs) and Raman (1000 x 1000 pixels, time per 1 pixel is 43 μs) images of Granite Gneiss India.
Anatase distribution.


Fast imaging mode with EMCCD / CCD


RAMOS N500 system can be used with a number of different detectors.

Up to three detectors can be used simultaneously. Proprietary algorithm for taking high speed of Raman imaging with fast spectral CCD (EMCCD) is offered.

The use of an EMCCD (Electron Multiplying CCD) camera can greatly increase Raman detection efficiency and speed.

Raman image of Silicon / SiOsample.
Si distribution (500 x 500 pixels, time per pixel is 5 ms).


Fully automated system Software package with powerful analytical functionality

Ultrawide field Raman imaging


Uniform, large size scanning area of a galvanic scanner module:
  • 150 μm x 150 μm (objective lens 100x)
  • 320 μm x 320 μm (objective lens 40x)
  • 680 μm x 680 μm (objective lens 20x)

Automatic XY stage can be used for ultra-wide field imaging.

The panoramic image (hyper image) by automatic stitching of a series of images obtained with the use of galvanic scanner.



High precision spectrometer calibration


RAMOS N500 is equipped with a neon lamp (option) for spectral calibration.

Calibration is possible at any wavelength by one click in the control software.

More capabilities


  • microscope can be equipped with a heating or cooling stage, vacuum or high pressure cell
  • fiber optics probe for remote measurements



Data Acquisition and Data Analysis software

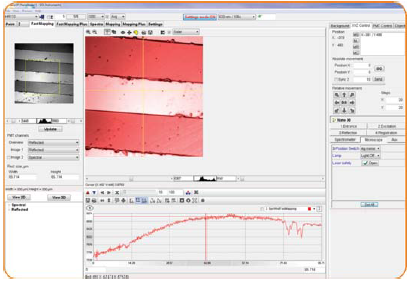

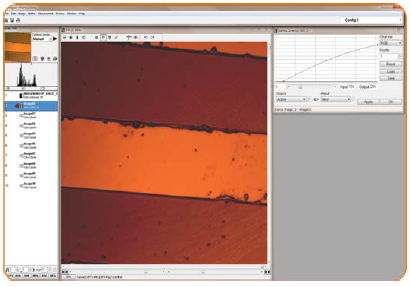

RAMOS N500 software “Nano SPO” with powerful analytical functionality is designed for hardware operating, data acquisition and data analysis.

  • 2D and 3D image creation
  • Autofocus control during mapping
  • Automatic background subtraction, cosmic ray removing, peak shift imaging, etc.
  • Support for external spectral databases
  • Data export to popular file formats
  • Intuitive user-friendly interface
  • Compatible with Windows XP, Vista, 7
