RAMOS S120 Basic Confocal Raman Microscope

RAMOS S120 Basic Confocal Raman Microscope


 RAMOS S120.png  IMG09220.png

  • Versatile automated confocal Raman microscope
  • High throughput true confocal  design enabling submicron resolution
  • Research-level optical microscope with advanced techniques
  • Powerful software enables mapping of lines, areas, depth profiles, and cross-sectional slices
  • Compact footprint
  • Up to 2 lasers configurations
  • Edge or Bragg filters
  • Fully automated change of lasers, gratings with no additional system alignment
  • High-resolution color video camera for a sample observation
  • Research grade optical microscope
  • Raman optical module
  • Automated 3-position turret with mirrors for input/output radiation
  • Confocal laser microscope module ("Reflection" module)
  • Two-channel imaging spectrometer
  • Z piezo scanner
  • Manual or automated microscope stage

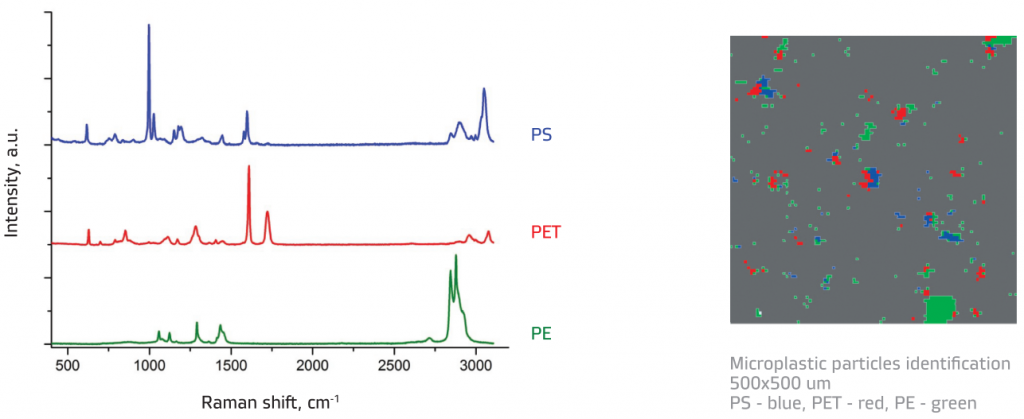

Spectroscopy:


  • Measuring modes: laser confocal Raman microscope, Raman spectrum measurement

  • Spectral range: 60 – 4 500 cm-1

  • 532 nm laser configuration

  • Spectral resolution: 1.6 cm-1/pixel, spectral stability better than 0.5 cm-1

  • 4 000 pixels for high spectral resolution


Confocal module:


  • Spatial resolution: lateral resolution < 1 μm, optical axis resolution < 2 μm

  • CW 532 nm laser, 50 mW (power adjustable) with lifetime > 10 000 hours

  • Integrated cooled detector based on CCD.


Optical microscope and objectives:


  • Research grade microscope with 10x eyepiece. Configuration of 10x, 20x, 50x, 100x objective lenses

  • Color camera system which can display a stored image on PC with at least 5MP

  • High precision manual positioning system with precision in XY plane

  • Software package for instrument control, data collection and data processing


Optional items:


  • Possibility to equip with 785 nm long-lifetime semiconductor laser, 130 mW


Advantages:


  • Free of chromatic aberration in the whole spectrum range
  • Modular high stability design with possible future upgrades by laser
