MicroXRF analysis of the ancient sword

XROS MF30.png

XROS MF30 – laboratory x-ray microscope-microprobe for studies of the objects by the methods of the optical microscopy, radiography, local element XRF microanalysis with possibility of the element mapping.


Using a microscope, a sample of up to 400 mm in size along the Y axis and of unlimited size along the X axis (max. scan area 150×150 mm; in the case of a larger area, the scanned areas can be stitched) and up to 105 mm high can be performed.


An overview video camera and two optical microscopes with magnification up to 200 times are using for accurate determination of the scanning area.


The central optical microscope with automated sharpness adjustment is combined with the axis of the microprobe (axis of the x-ray beam).


Local X-ray fluorescence microanalysis with the possibility of elemental mapping and X-ray studies can be carried out both separately and simultaneously.


Sample positioning accuracy is 10 microns.

The minimum diameter of the x-ray probe is 30 µm.

The range of simultaneously measured elements from 11Na to 92U.

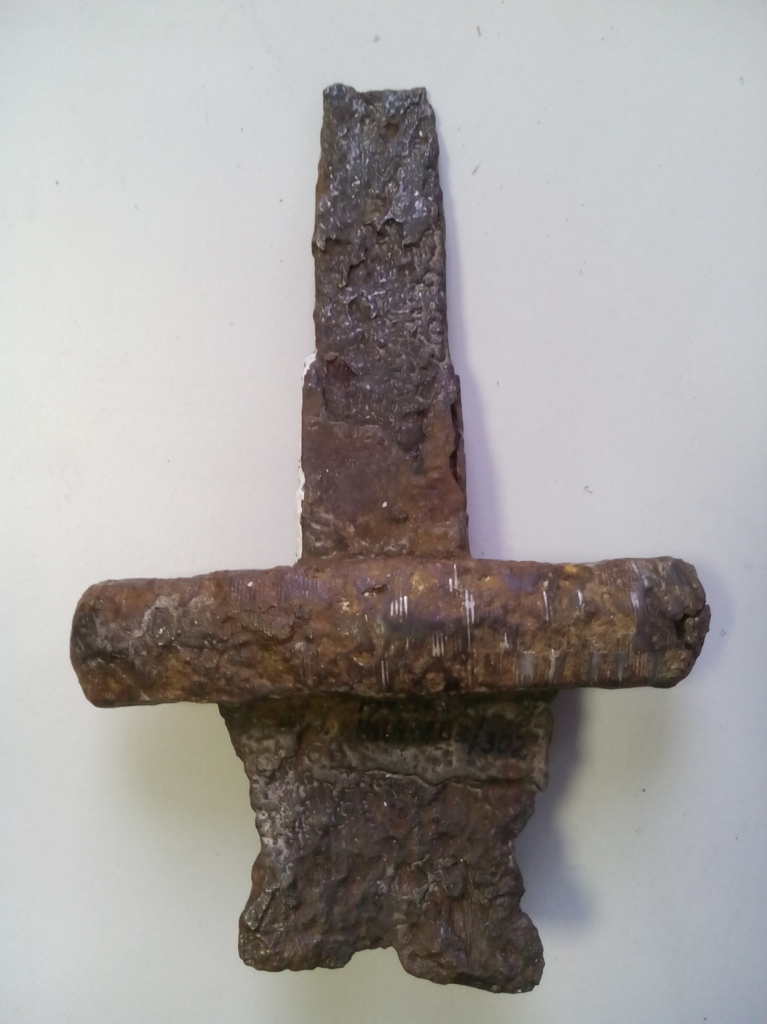

Samples: fragments of ancient sword (X century).


Experiment #1


Figure 1 shows a photo of the sample. Figure 2 shows selected scan areas. Figures 3-9 show the elemental mapping of selected areas of the sample.


Figure 1. Photo of the sample.png

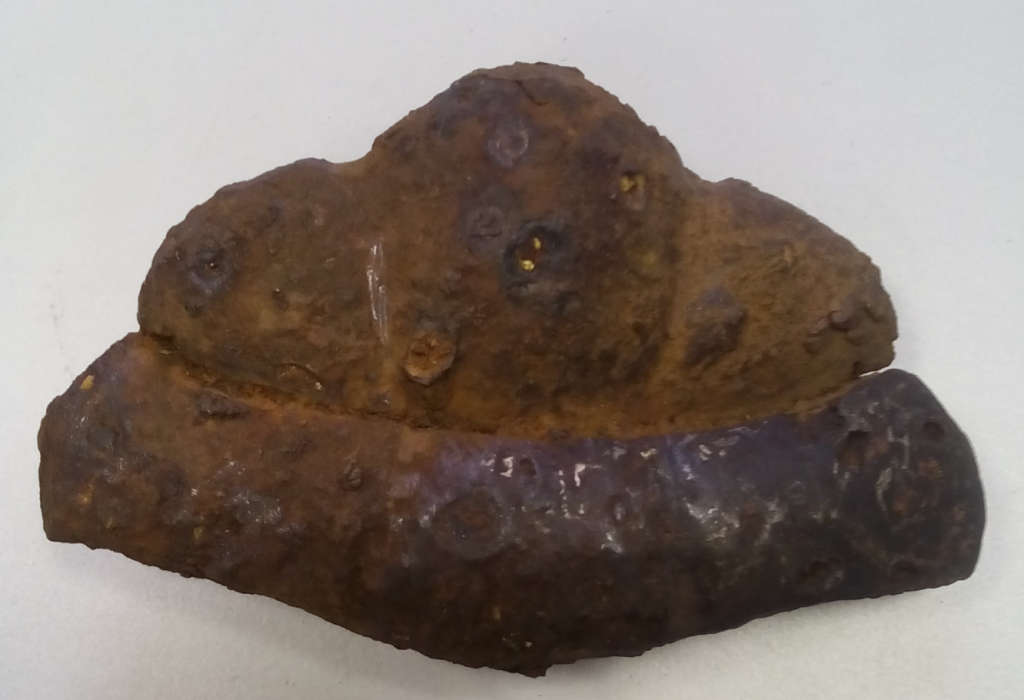

Figure 1. Photo of the sample

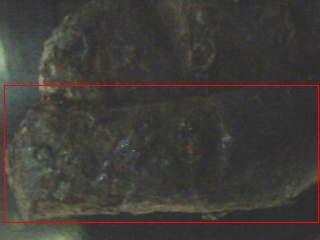

2-1.png 2-2.png

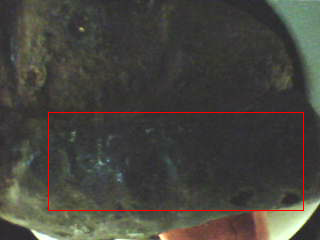

Figure 2. Scan areas are marked with red


 au1.png     au2.png

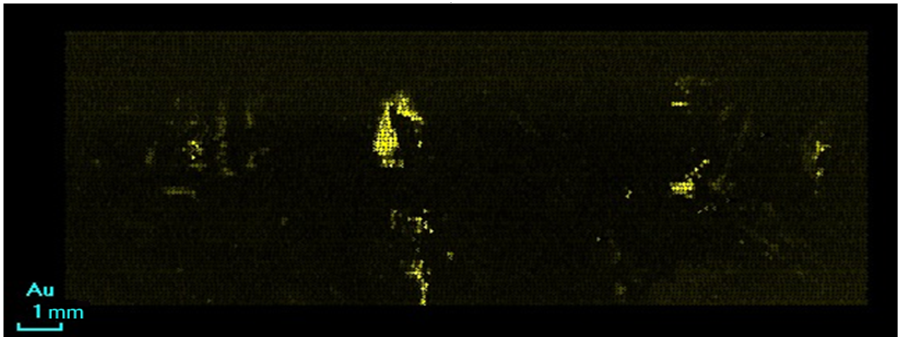

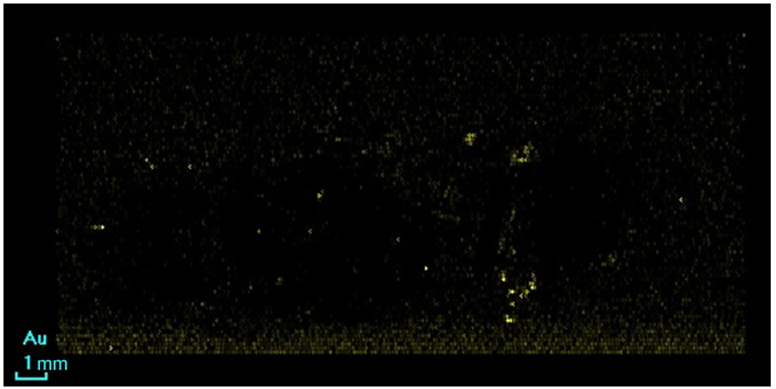

Figure 3. Au distribution

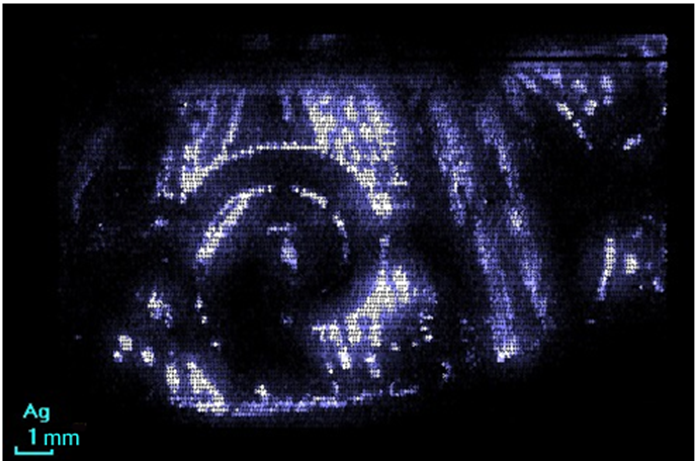

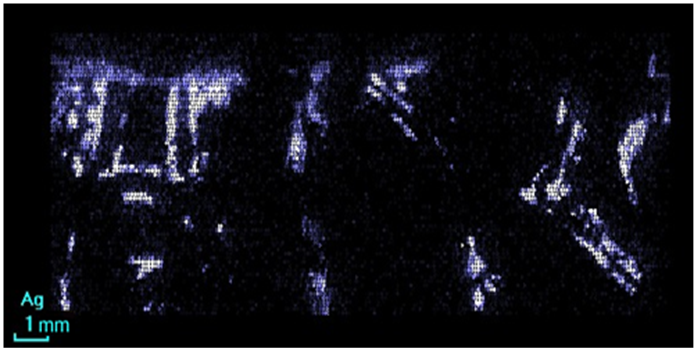

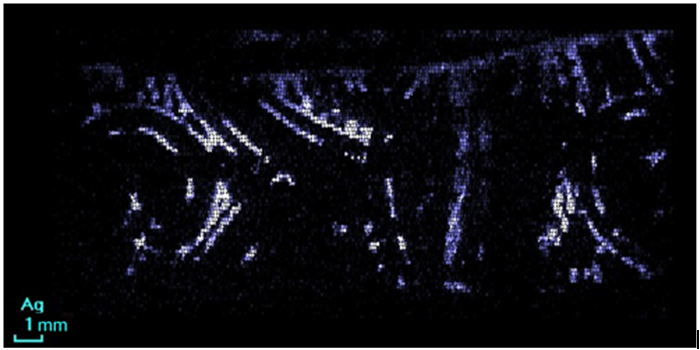

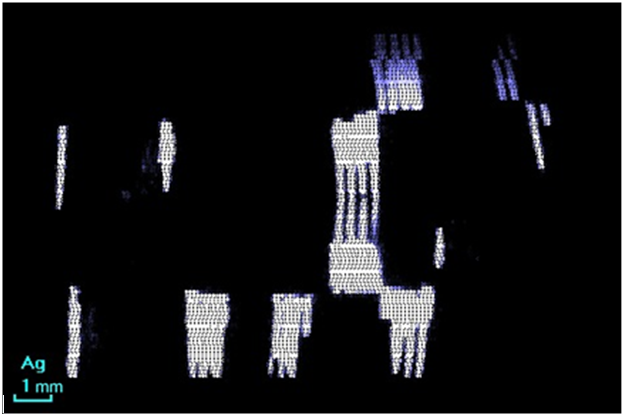

Figure 4. Ag distribution


cu1.png cu2.png

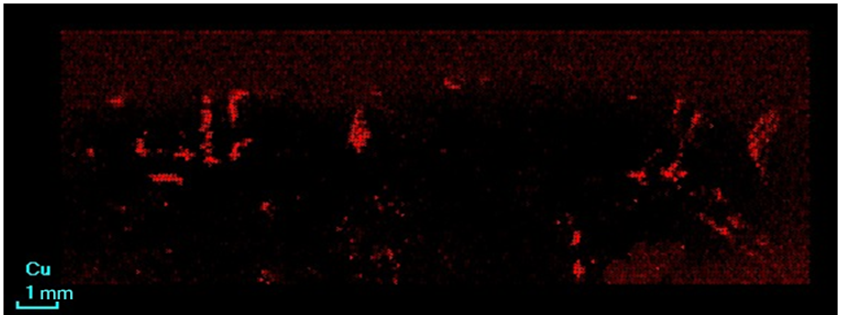

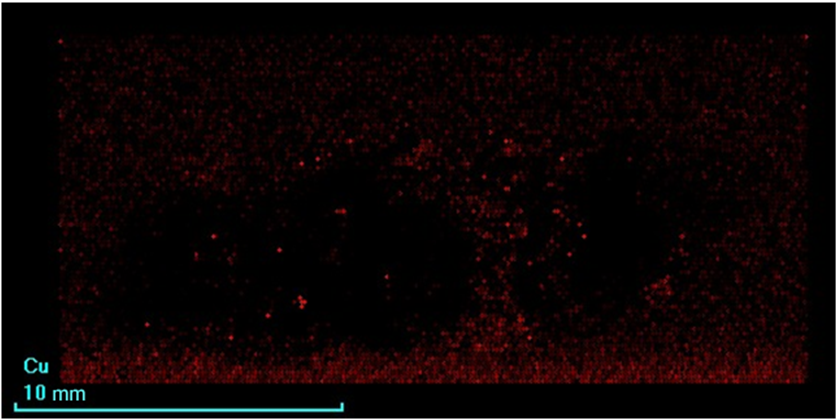

Figure 5. Cu distribution


fe1.png fe2.png

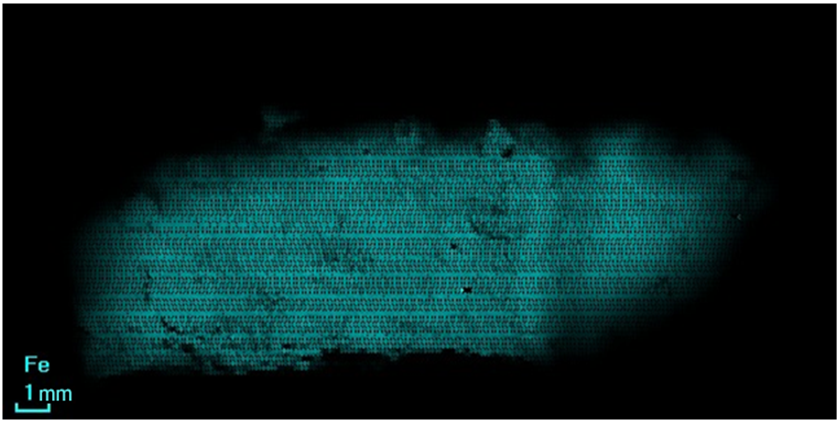

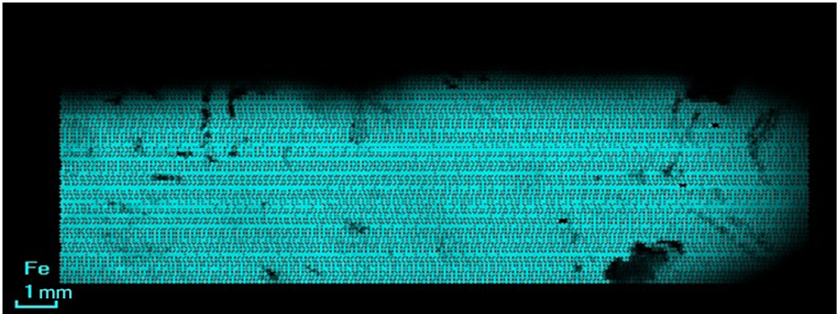

Figure 6. Fe distribution


 ca1.png ca2.png

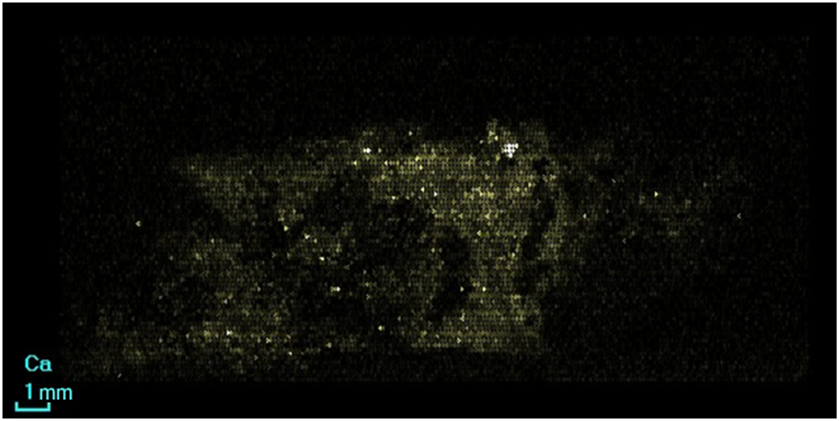

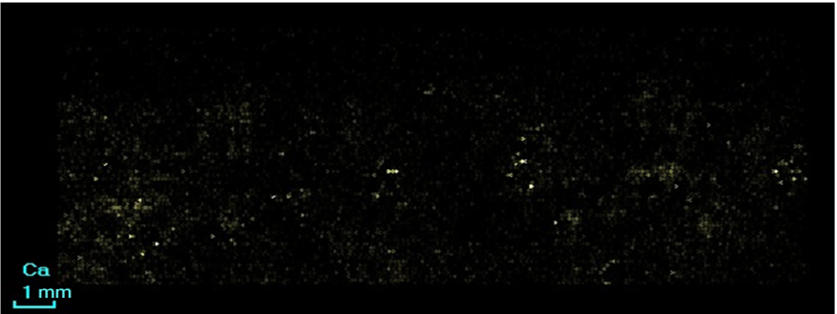

Figure 7. Ca distribution


Figure 8. Au (yellow) and Ag (purple) distribution.png
Figure 9. Au (yellow), Ag (purple) and Fe (green) distribution.png

Figure 8. Au (yellow) and Ag (purple) distribution

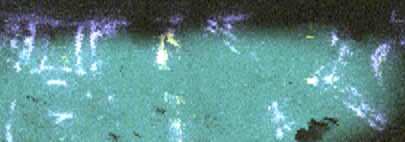

Figure 9. Au (yellow), Ag (purple) and Fe (green) distribution


Experiment #2


Figure 1 shows a photo of the sample. Figure 2 shows selected scan areas. Figures 3-12 show the elemental mapping of selected areas of the sample.

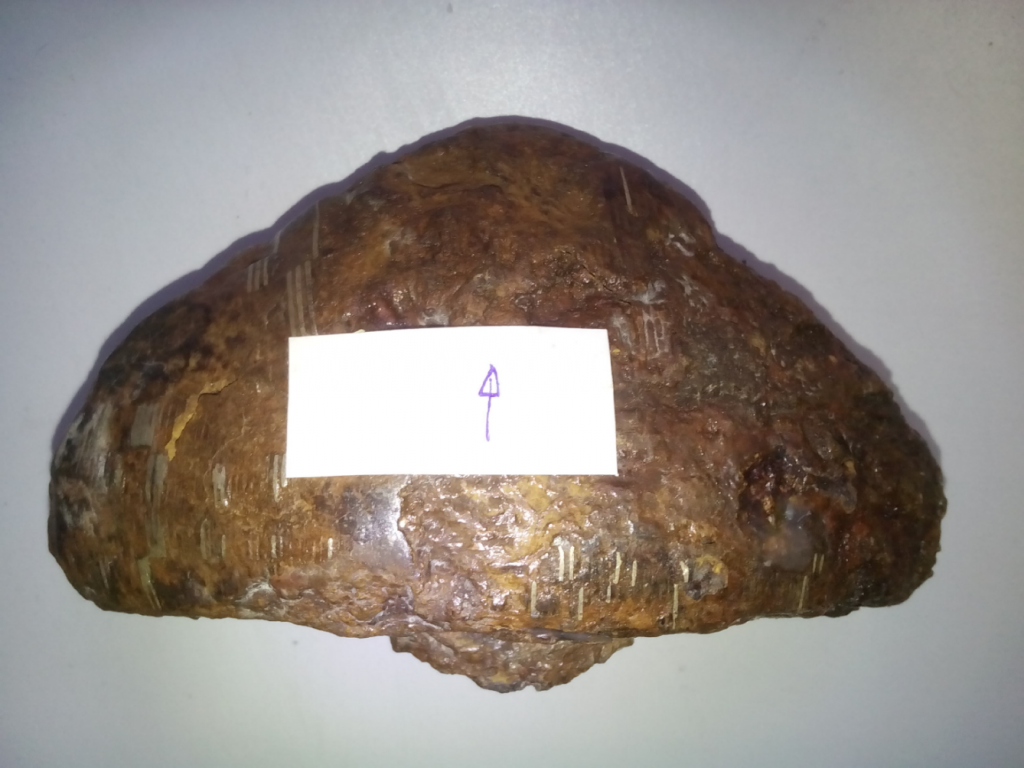

Figure 1. Photo of the sample1.png

Figure 1. Photo of the sample

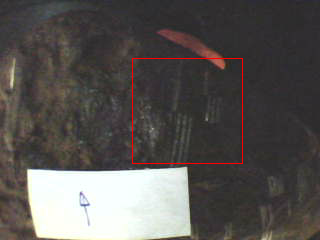

Figure 2. Scan areas are marked with red1.png Figure 2. Scan areas are marked with red2.png

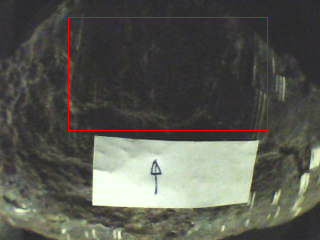

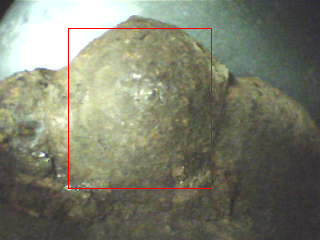

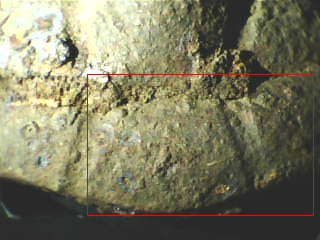

Figure 2. Scan areas are marked with red


Figure 3. Au distribution.png

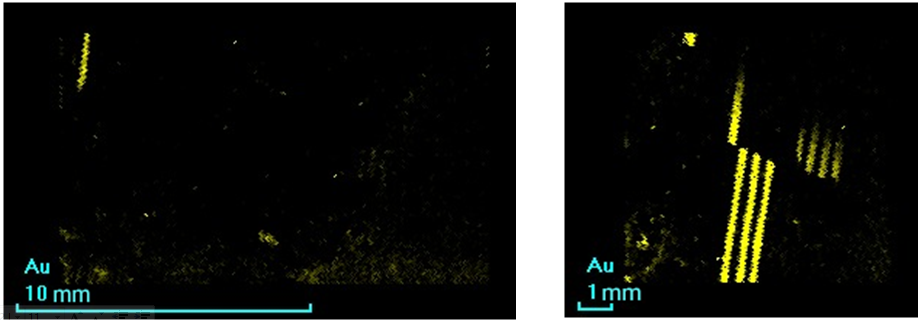

Figure 3. Au distribution


Figure 4. Ag distribution.png

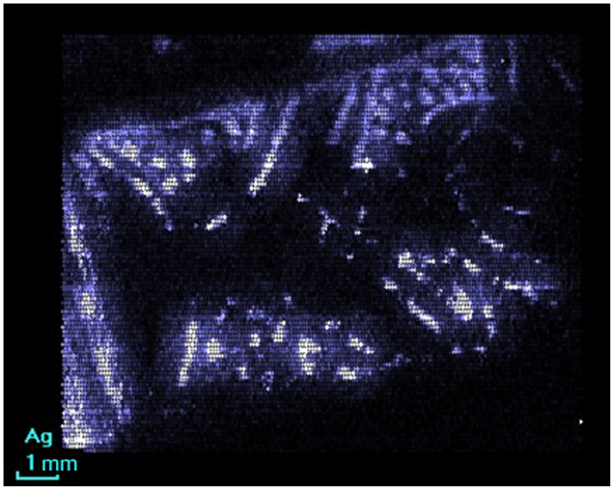

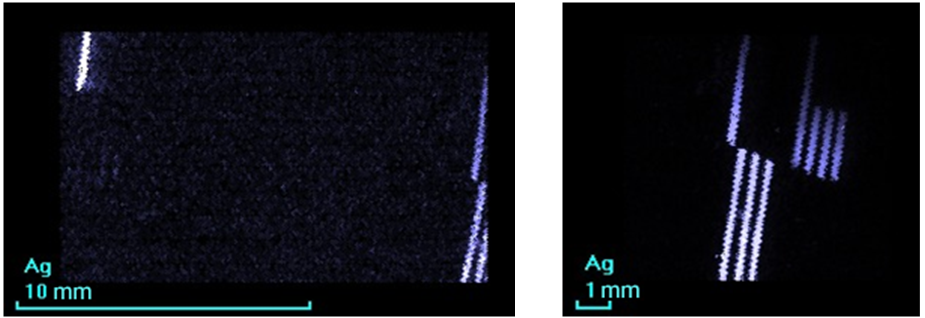

Figure 4. Ag distribution


Figure 5. Cu distribution.png

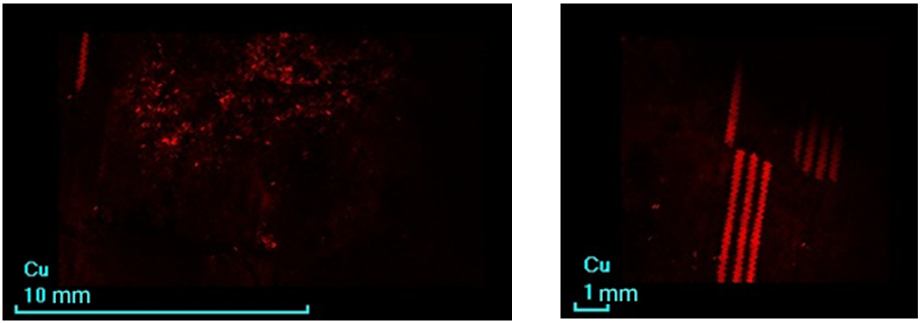

Figure 5. Cu distribution


Figure 6. Fe distribution.png

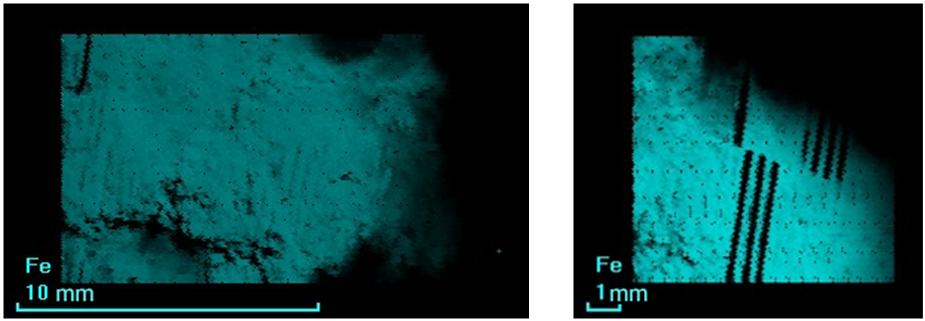

Figure 6. Fe distribution


Figure 7. Ca distribution.png

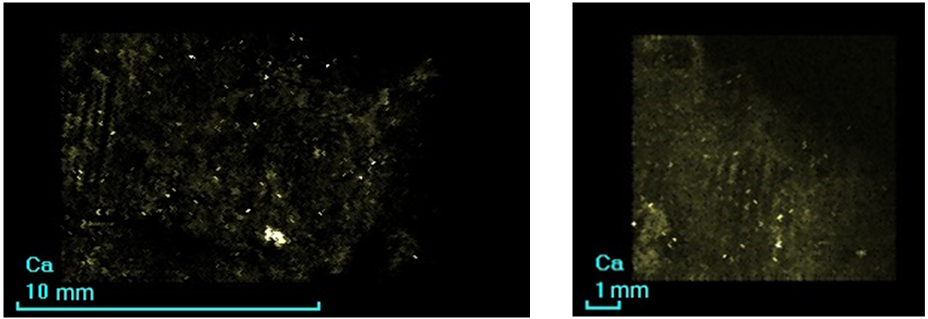

Figure 7. Ca distribution


Figure 8. As distribution.png

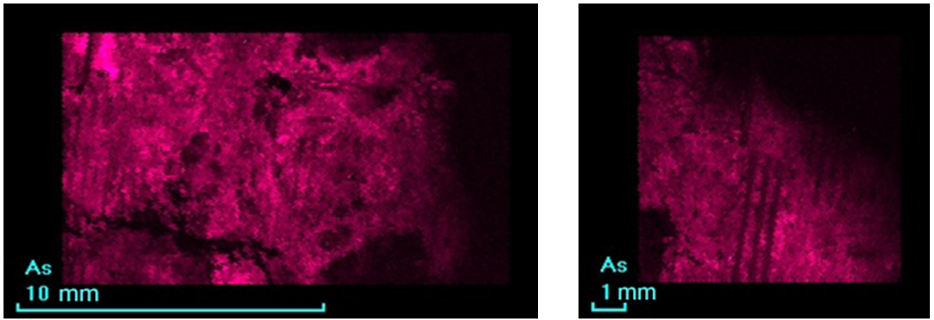

Figure 8. As distribution

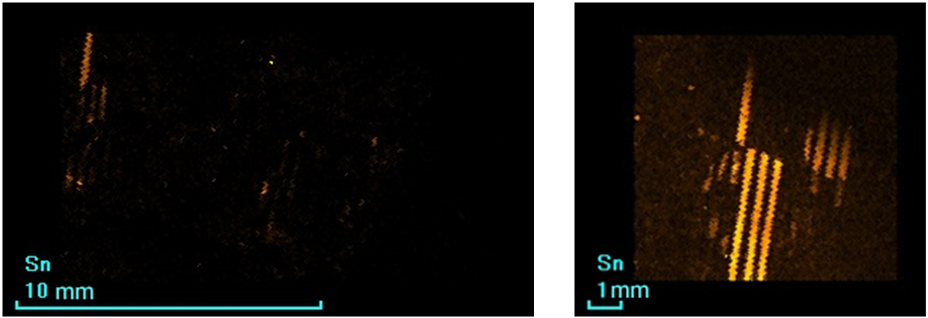

Figure 9. Sn distribution.png

Figure 9. Sn distribution


Figure 10. Mn distribution.png

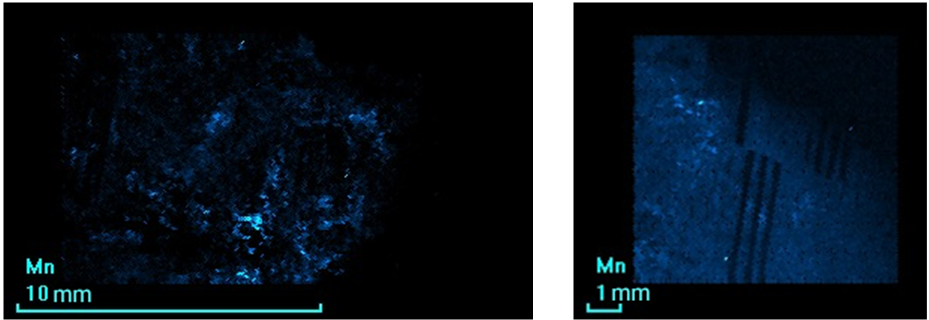

Figure 10. Mn distribution


Figure 11. Zn distribution.png

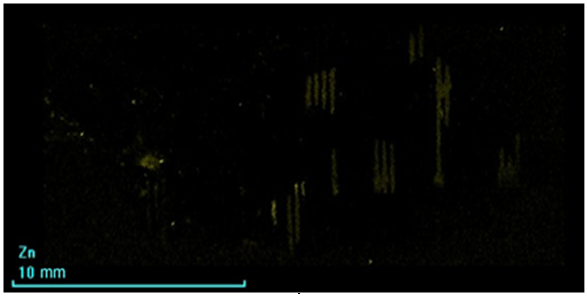

Figure 11. Zn distribution

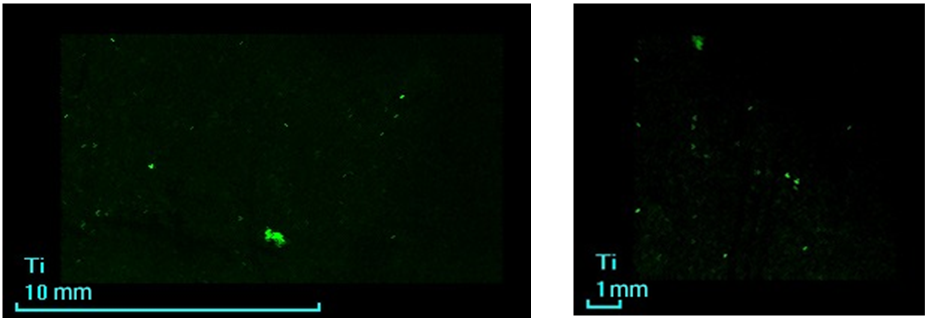

Figure 12. Ti distribution.png

Figure 12. Ti distribution


Experiment #3


Figure 1 shows a photo of the sample. Figure 2 shows selected scan areas. Figures 3-11 show the elemental mapping of selected areas of the sample.



Figure 1. Photo of the sample


Figure 2_1.png Figure 2_2.png
Figure 2_3.png

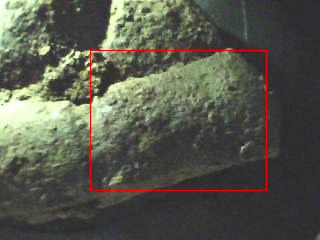

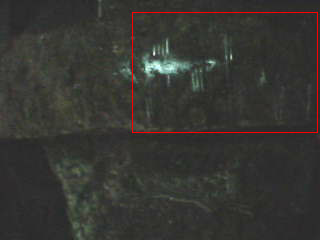

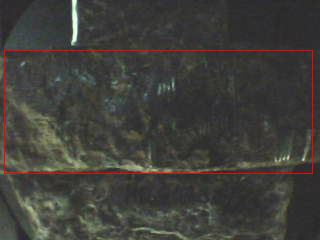

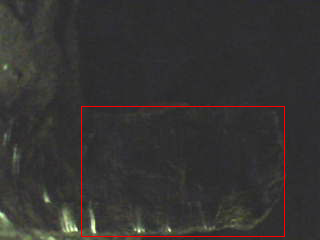

Figure 2. Scan areas are marked with red


Figure 3_2.png
Figure 3_3.png
Figure 3_1.png

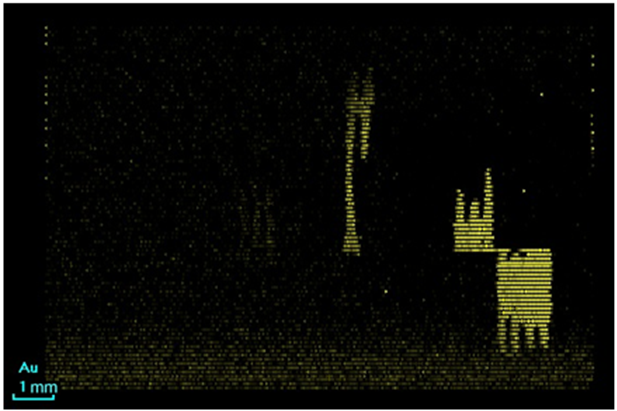

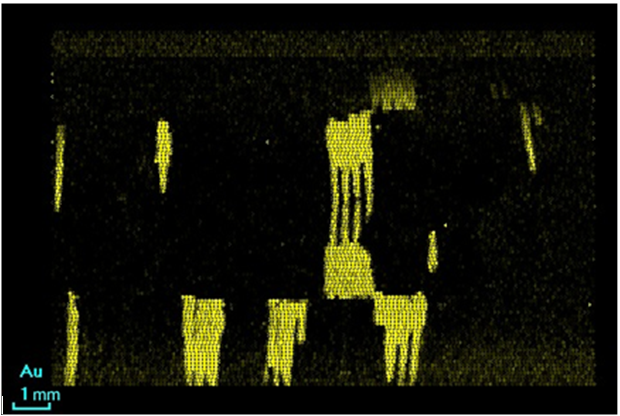

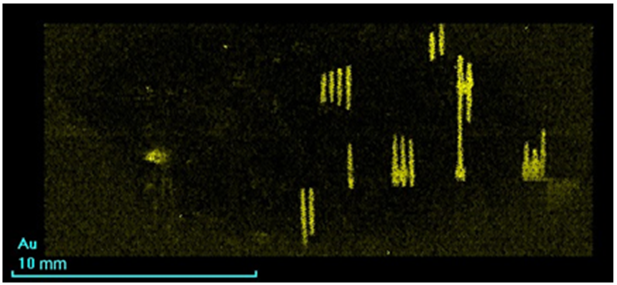

Figure 3. Au distribution

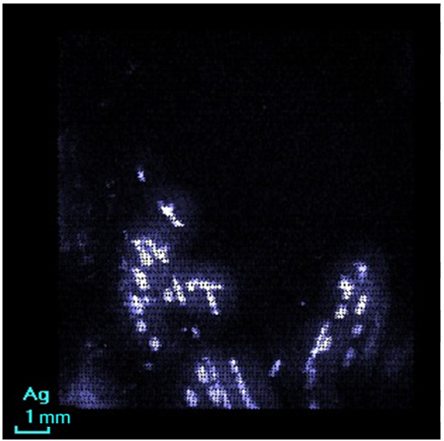

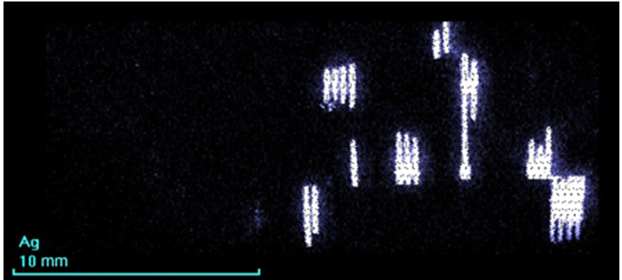

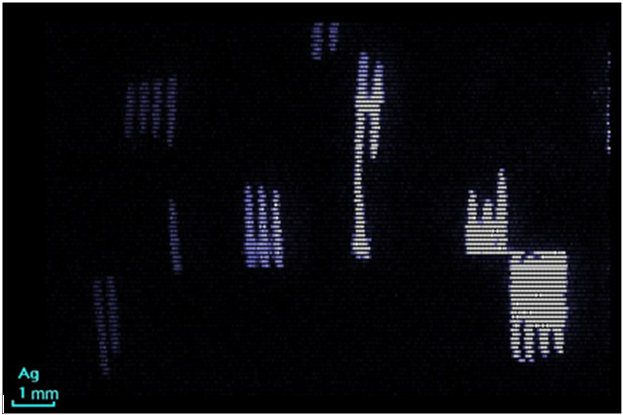

Figure 4. Ag distribution

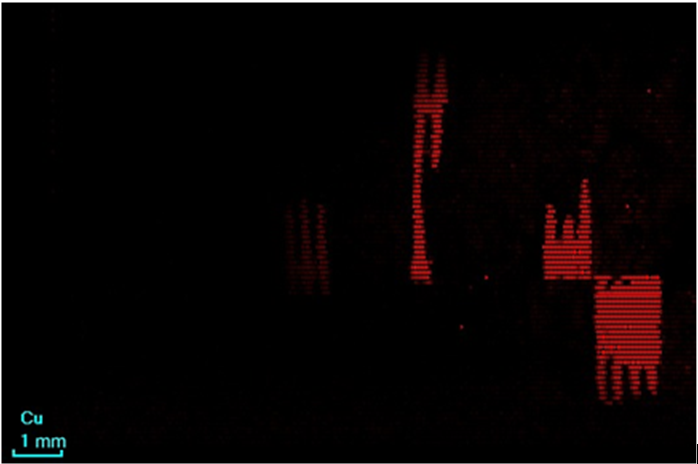

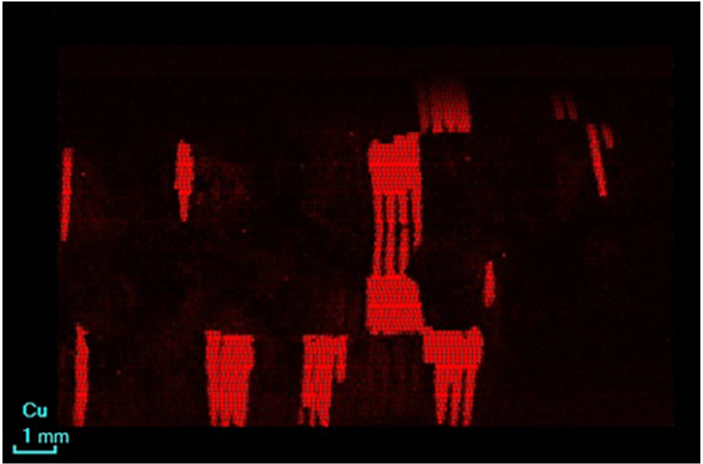

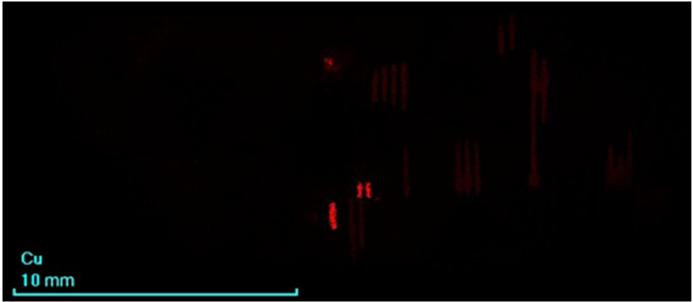

Figure 5. Cu distribution

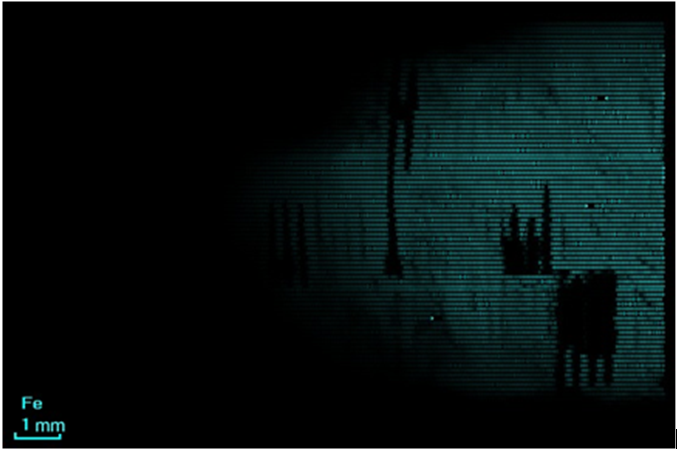

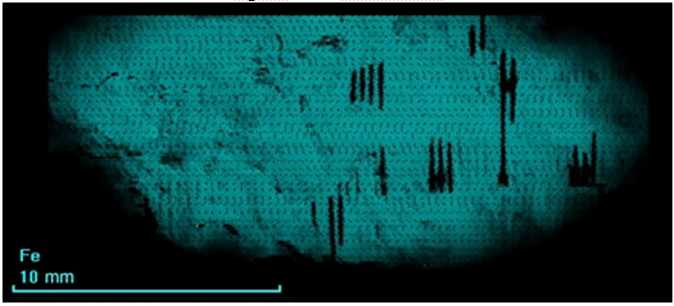

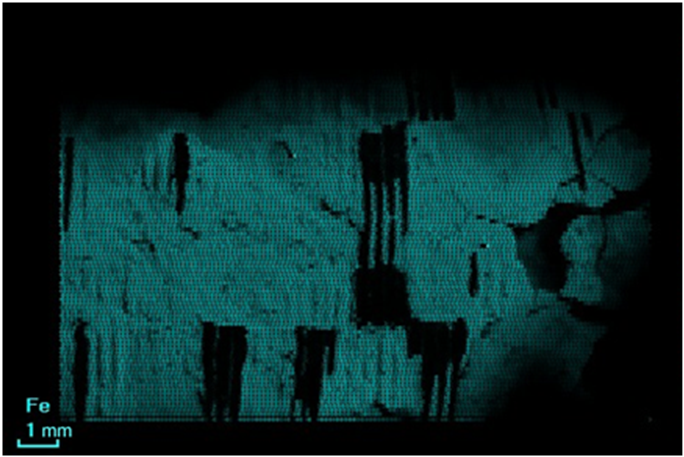

Figure 6. Fe distribution

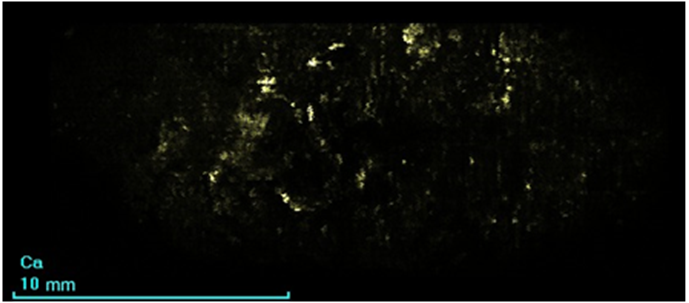

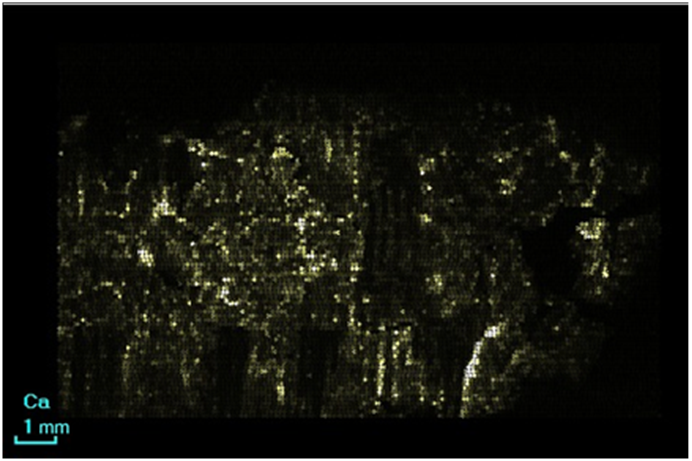

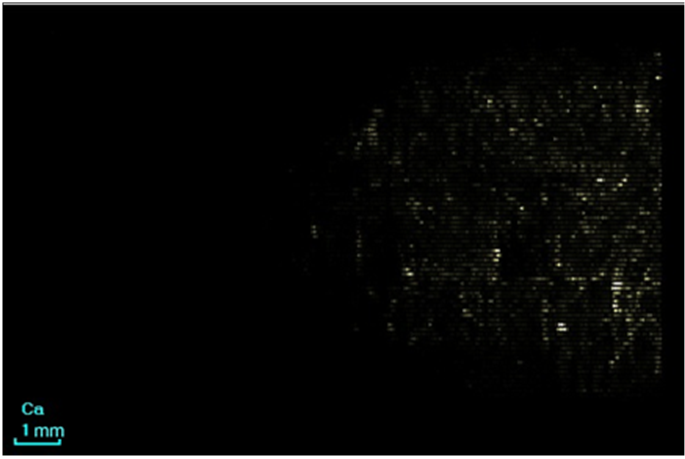

Figure 7. Ca distribution

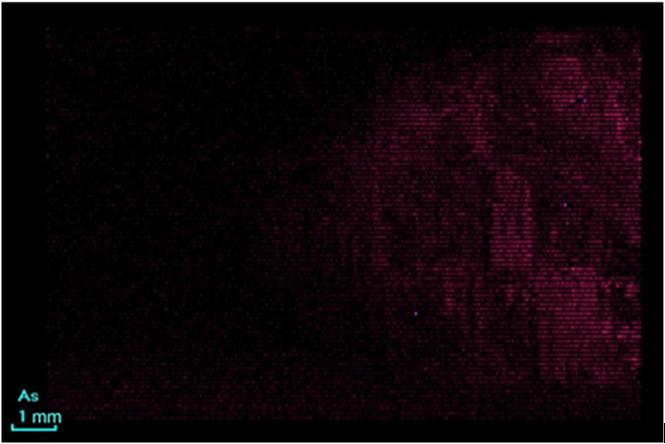

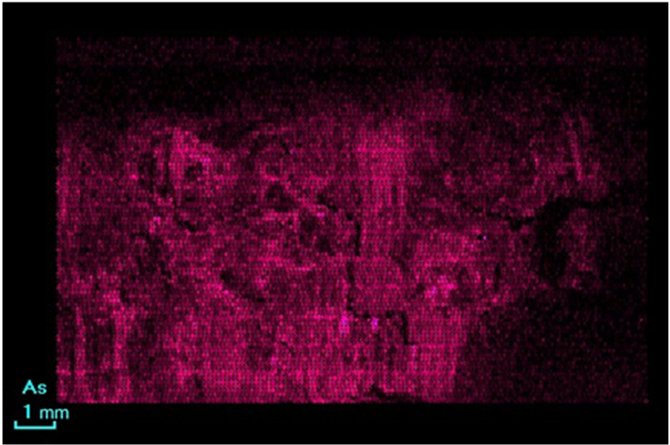

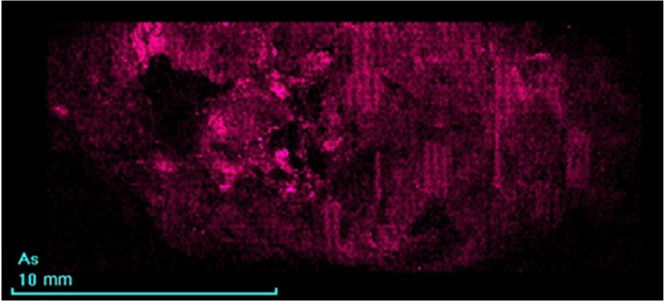

Figure 8. As distribution

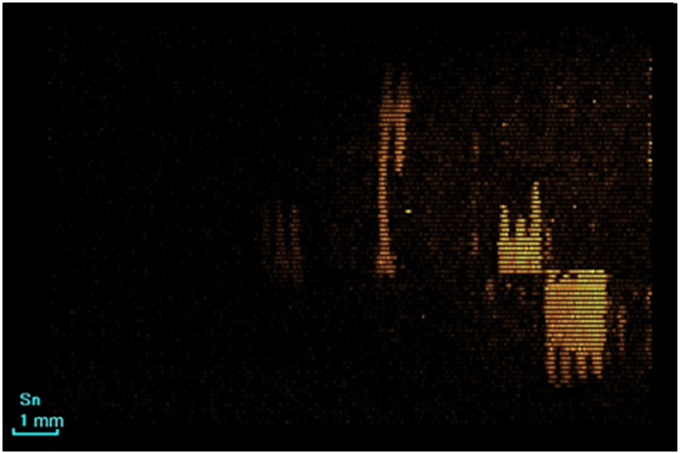

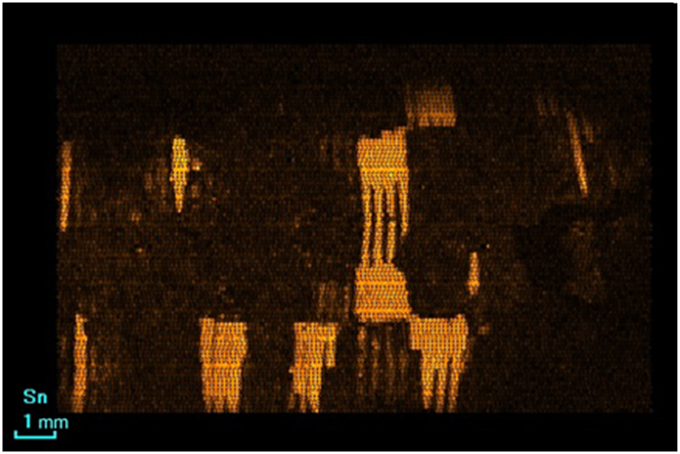

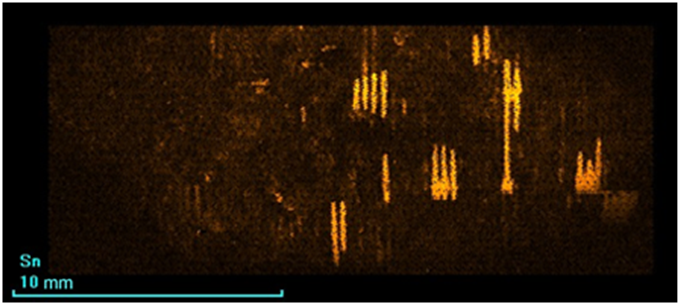

Figure 9. Sn distribution

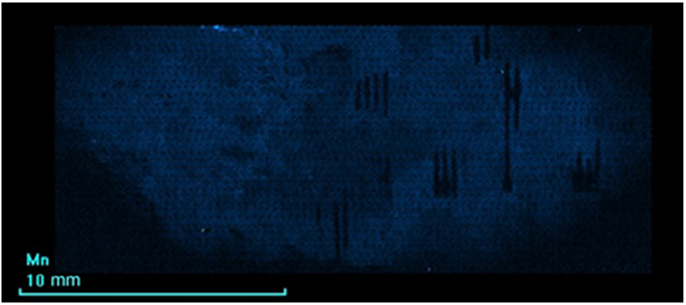

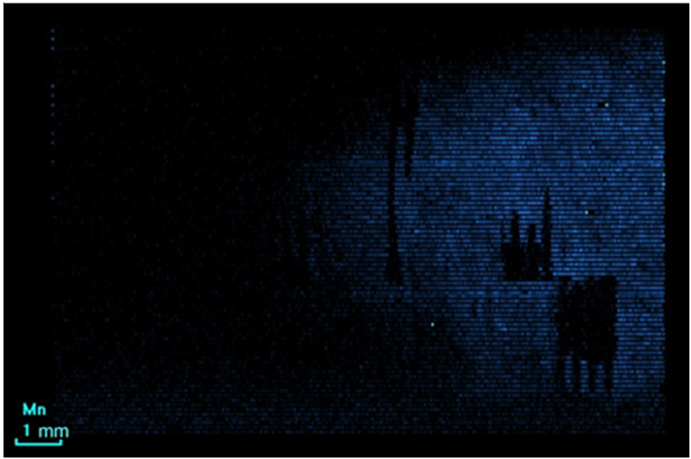

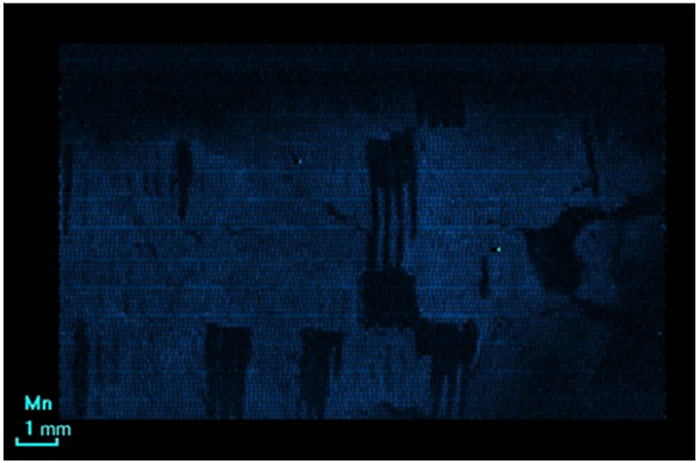

Figure 10. Mn distribution

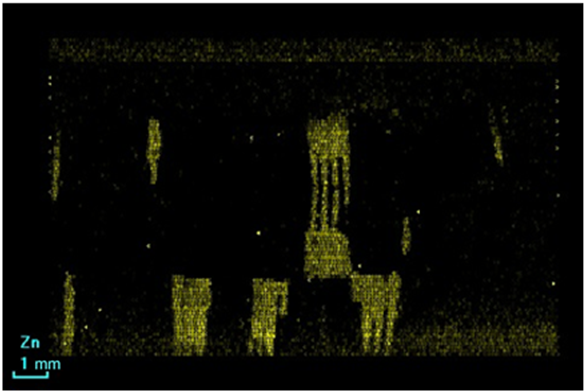

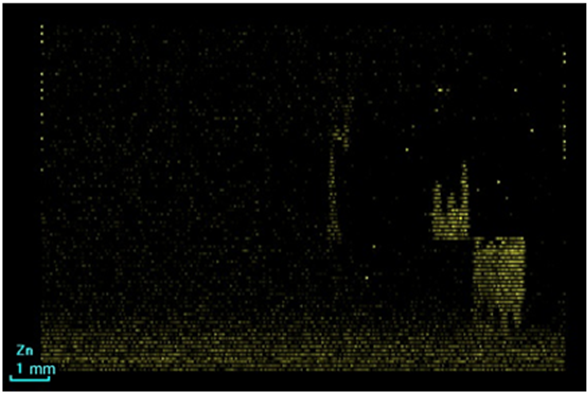

Figure 11. Zn distribution
