AVOS Integra. Multilayer Vibration Isolation System

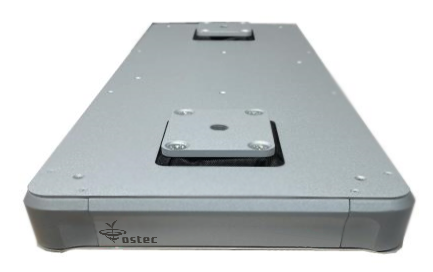

AVOS Integra Ostec.png
Image of a single platform



Two rectangular platforms


Single platform dimensions:

800 (length, resizable) x 300 x 75 mm


Two active isolators on each platform




Specification


Actuator Force

Vertical: 80N, Horizontal: 40 N

Active Isolation Range

0.5 – 100 Hz

Architecture

Multi-layer Vibration Isolation Structure

Degrees of Freedom

All 6 degrees

Vibration Isolation Performance

-8 db gain on 1 Hz

-20 db gain on 2 Hz

Settling Time

≤0.1 sec

Real-Time Diagnostic Tool

Built-in real-time 2xChannels oscilloscope,

real-time 2xChannels spectrum analyzer

per module and per system

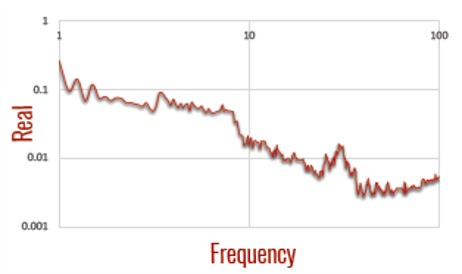

Performance
