GAOS SENSON gas analyzers

New concept of gas analysis equipment design


GAOS SENSON.png


For a start – a small digression. All electric lighting devices consist of two main elements – the lamp and the luminaire itself. Modern electric lamps are very diverse devices. They are based on various physical principles (incandescent, gas-discharge, LED, etc.). They have different electrical parameters (power, voltage).



They can be implemented in various form factors, vary in size, color, etc. They are produced by many manufacturers. It is a lamp that provides the main function of lighting devices - to shine. But in order for the lamp to glow, it must be installed in an electric lighting device – a chandelier, a ceiling lamp, a lantern, etc. Lamps need to be changed periodically. However, it does not occur to anyone to change the lighting device entirely.


After all, a chandelier is much more expensive than a light bulb, and changing it requires certain qualifications and special technical measures (for example, de-energizing the connection point). But any housewife can replace a blown bulb. Why? The answer is simple – all electric lamps and electric devices have a unified, standard connection interface (nominal supply voltage, type of base/cartridge, etc.). Not just standard, but also specially designed for easy lamp change. What is this lyrical digression for?


Stationary gas analyzers are somewhat reminiscent of lighting devices. They are represented by a variety of models from different manufacturers. Virtually any of these devices are built according to a general principle and consists of three main components:


  • gas-sensitive element (primary converter of gas concentration into an electrical signal);
  • secondary signal converter from a gas-sensitive element to the unified electrical signal (digital or analog);
  • a module of indication, alarm, control of external devices, etc.


In many cases, third-party sensors are used as sensitive elements. The physical principle of operation of such elements can be very different – electrochemical, thermal catalytic, photoionization, optical, semiconductor, thermal conductometric and other types of detectors are produced. A number of foreign and domestic companies specialize in such sensors, producing them as mass electronic components.

The problem is that each of the gas analyzers on the market is a complete measurement tool. It is subject to periodic calibration, which means disassembly/assembly, availability of a replacement stock for the period of calibration, and highly qualified personnel for work on gas monitoring networks.

Often, such work involves de-energizing of facilities, which means even if temporary, but the termination of the main technological processes at the facility. As a result, maintenance costs can significantly exceed the cost of the gas analyzers themselves, especially at geographically remote and autonomous facilities.

And of course, having once purchased a device, for example, for methane analysis, it cannot be used to measure ammonia concentration. We changed the concept, creating a wide range of compact gas analyzers GAOS SENSON-SM-9001 and gas analysis systems based on them.


New concept·
  • simplifies the replacement of gas analyzers for calibration and in the event of a malfunction – in the case of GAOS SENSON it is as simple as changing a light bulb, no need to dismantle/change the entire device. That is, it is enough to change a lightbulb, not a chandelier;

  • it dramatically reduces the stock of replacement systems in volume and cost –  only the GAOS SENSON-SM-9001 modules are needed (supply of light bulbs, not chandeliers);

  • requirements for the qualification of staff (there is only one requirement – accuracy) are reduced.


GAOS SENSON-SM-9001 gas analyzer


The metrological characteristics of stationary gas analyzers are almost completely determined by the gas-sensitive element with an electronic control module. Each type of gas-sensitive element requires its own control and processing algorithms; individual calibration is required for each individual sensor. By combining the sensor with the second processing module into a single structural unit, we received an intelligent sensor module (ISM). It stores calibration and other factory constants and also supports an open, unified digital interface for connecting to external devices.

Since all the metrologically significant elements are concentrated in the ISM, and there are enough standard power supply and data transmission interfaces to work with it, this module is a complete gas analyzer – GAOS SENSON-SM-9001, to which the type of measuring tool is assigned.


Indeed, the operation of GAOS SENSON-SM-9001 requires an only external power supply and any device supporting the serial port 11АВТ, i.e. any personal computer or industrial controller. No specialized software is required; any terminal program (for example, the one supplied with Windows ) is enough. As a matter of principle, ONLY GAOS SENSON-SM-9001 is subject to periodic “checking and replacing”.



Gas analyzer GAOS SENSON-SM-900

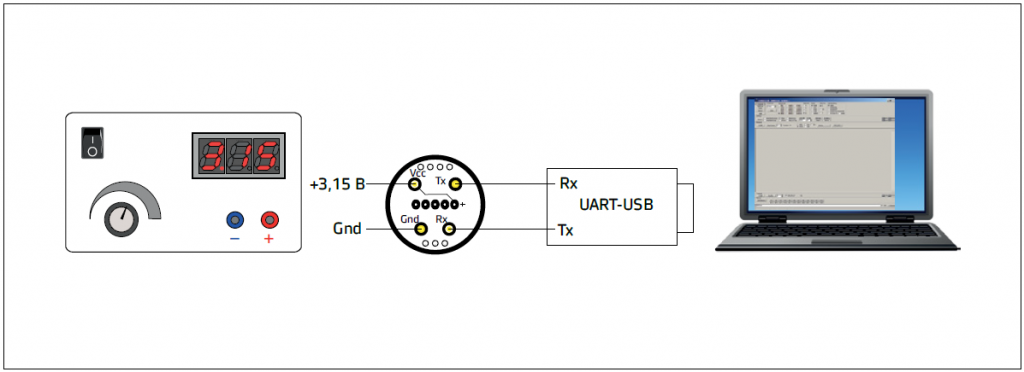

Connection diagram for the gas analyzer GAOS SENSON-SM-9001


Gas analysis systems based on gas analyzers GAOS SENSON-SM-9001


GAOS SENSON-SM-9001 fundamentally changes the approach to design and operation of gas analyzers, while maintaining outward similarity with traditional solutions. This is possible due to the functional separation of a small built-in measuring module (gas analyzer) and all other elements of the device (gas analysis system).


For ease of use of gas analyzers GAOS SENSON-SM-9001 a number of sets of auxiliary equipment have been developed. Together with the gas analyzer GAOS SENSON-SM-9001 they form gas analysis systems. As part of these systems, the GAOS SENSON-SM-9001 gas analyzer is referred to as a smart sensor module. We emphasize that only the ISM is the measurement tool, it is this module that is subject to periodic calibration. That’s why, during this procedure, it is not necessary to dismantle the rest of the gas analysis system equipment.


Auxiliary equipment of gas analysis systems is made in an explosion-proof version of the type “flameproof shell” or “intrinsically safe circuit” of the ia level. It has Ex- marking 1 Ex d IIC T 6 (flameproof enclosure) or 1 Ex ia IIC T4 X (intrinsically safe circuit). The rated voltage of the power supply is 24 V DC, the allowable range is 18-27 V. The degree of protection of the enclosure against external influences is IP 66 according to GOST 14254-2015 (IEC 60529:2013). We offer a range of options for gas analysis systems, allowing you to choose the configuration that most closely matches the features and operating conditions. All gas analysis systems are grouped into two series: SD and SV (GAOS SENSON-SD-xxxx-SM and GAOS SENSON-SV-xxxx-SM).


The SD series includes the basic models of systems (“sensors”). It includes modules providing ISM connection, power supply and data exchange with external devices via the Current Loop 4-20 mA and RS-485 channels (protocol MODBUS RTU). However, the gas analysis systems of this series do not have the means to display and control external devices. The SV series is a functional extension of the SD series. Each unit of the SD series corresponds to the gas analysis system of the SV series. SV systems have the capabilities to indicate the measured concentration, signaling that thresholds are exceeded, a built-in keyboard for adjustment, and controls for external equipment.


Each of the series contains three groups of devices, differing only in the design options, and, accordingly, restrictions on the operating conditions. The systems of group 1 – GAOS SENSON-SD-7031-SM and GAOS SENSON-SV-5021-SM, respectively are the most resistant to external influences. The modules of these systems are made in explosion-proof enclosures (stainless steel and aluminum alloy) of the type “flameproof enclosure” and with an allowable operating temperature range -60 to +50 °C.


GAOS SENSON Gas Analysis Systems


Group

Special features

GAOS SENSON-SD series

GAOS SENSON-SV series

1

Housing: Stainless
steel, aluminum alloy
Ex marking:
1Ex d IIC T6
(option - PB Ex d I Mb X
and 1Ex d IIC T6 Gb X)
Temperature range: -60…50 °.


SENSON-SD-7031-SM

SD-PBExd


SENSON-SV-5021-SM

(6 version)

2

Housing: aluminum alloy
Ex marking:
1Ex ia IIC T4 X
Temperature range: -40…50 °.


SENSON-SD-7033-SM


SENSON-SV-5023-SM

3

Housing: Polycarbonate
Ex marking:
1Ex ia IIC T4 X
Temperature range: -30…50 °.


SENSON-SM-7032-SM




SENSON-SV-5022-SM


Systems of group 3 – GAOS SENSON-SD-7032-SM and GAOS SENSON-SV-5022-SM – are produced in plastic cases. They also have an intrinsically safe “ia” type of explosion protection and can be operated at temperatures -30 to +50 °C.


Of course, gas analysis systems have other minor differences related to the peculiarities of their design and purpose. More specialized gas analyzers are created on the basis of Gas Analysis Systems. For example, the GAOS SENSON-SV-5024 gas analyzer for analyzing oxygen or carbon monoxide concentrations is intended for indoor use in explosion-proof areas.


On the contrary, the mine version of the gas analyzer GAOS SENSON-SV-PBExd is designed to work in underground mines, mines, and land-based buildings, it has the Ex marking PB Ex d I Mb X and 1Ex d IIC T6 Gb X.


Main features of GAOS SENSON Gas Analysis Systems


GAOS SENSON
Model Name
Auxiliary
equipment
(modules)
Housing
material


Type of
explosion
protection


Temperature
range, o C
Indicator
and
keyboard
Interfaces     Relay

Sound
alarm



 Current
loop

4-20 mA

 RS-48S
SD-7031-SM MKT-1m  Stainless
steel
d-shell  -60…50  Absent  Present        Present  Absent
Absent
SD-7032-SM MKT-1p  Plastic Intrinsically
safe circuit
1a
-30…50  Absent  Present  Present  Absent  Absent
SD-7033-SM
MKT-2m  Aluminium
alloy
Intrinsically
safe circuit
1a
-40…50  Absent  Present  Present  Absent  Absent
SV-5021-SM  MKT-1m,
MKUIS
Stainless
steel,
Aluminium
alloy
d-shell
-60…50  Present  Present  Present*  Present  Possible
connection
SV-5022-SM  MKTI-1p  Plastic    Intrinsically
safe circuit
1a
-30…50  Present  Present  Absent  Present  Present
SV-5023-SM
MKTI-1m  Aluminum
alloy
Intrinsically
safe circuit
1a
-40…50  Present  Present  Present  Present  Present

* Not in all versions of GAOS SENSON-SV-5021-SM


GAOS SENSON-SD series


The system GAOS SENSON-SD-7031-SM is a switching and broadcasting module MKT-1m in a cylindrical stainless steel case with an easily removable cover. The gas analyzer GAOS SENSON-SM-9001 is installed under the cover.


The system GAOS SENSON-SD-7032-SM is made in a plastic case. ISM is connected to the MKT-1p module. The connection of ISM is provided by a special connector, covered with a protective cover.


The GAOS SENSON-SD-7033 system has a metal case with two cable entries and the sound alarm system. ISM is connected similarly to model 7032.


GAOS SENSON-SV series


The systems of the GAOS SENSON-SV series have more capabilities than those of the GAOS SENSON-SD series in terms of autonomous use. As a rule, all models of this series have a digital indication system, a keyboard for adjustment, actuating relays, and sound alarm systems. Group of systems GAOS SENSON-SV-5021-SM Auxiliary equipment of this group is made in the form of two blocks:


  • MKT-1m module with ISM installed in it;
  • module of switching, indication, control and interfacing of MKIUS.

All systems of the GAOS SENSON-SV-5021-SM series have an interface “current loop 4-20 mA”. Type of explosion protection – “flameproof enclosure”.


The systems of the GAOS SENSON-SV-5021 series are divided into two main groups: relay systems and network systems. Network systems (versions 5021-03 and -13) support the RS-48S digital interface but do not have actuating relays. Relay systems (5021, 5021-02, -10 and -12), on the contrary, are equipped with actuating relays, the connector for connection to the RS-48S channel is not provided.


The MKT-1m module can either be directly screwed into the MKIUS unit or connected to it with a 1.8 m cable (can be changed upon special order). Versions without indication and the keyboard are also possible (for example, for a decrease in energy consumption).


Gas analysis systems GAOS SENSON-SV-5022-SM and GAOS SENSON-SV-5023-SM are made in plastic and metal housings, respectively. Both systems have intrinsic safety type 1a explosion protection, a digital indicator and keyboard, three executive relays and a built-in sound alarm, as well as the Current loop 4-20 mA interface. The GAOS SENSON-SV-5023-SM system additionally supports the RS-48S digital interface, that is, it can operate both independently and as part of a network.


Process versions


Gas analysis systems can be produced in process versions. In this case, the protective cap with a grid for diffusion sampling is replaced by a cap with nozzles for the forced supply of samples. Such devices include GAOS SENSON-SD-7031-01-SM, SENSON-SD-7033-01-SD, SENSON-SV-5023-01-SD.
