OCOS digital spectroscopy cameras

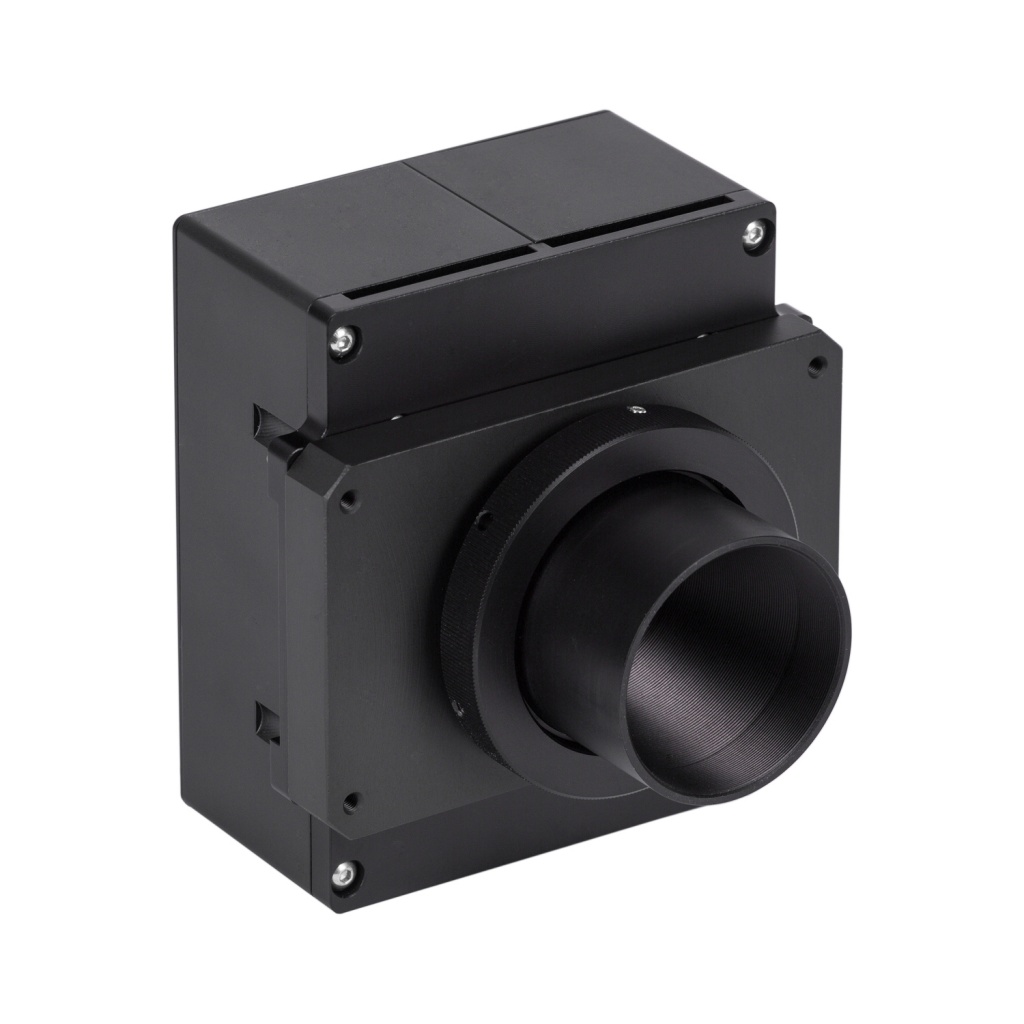

HSO 104H

CCD linear area image sensor with electronic shutter

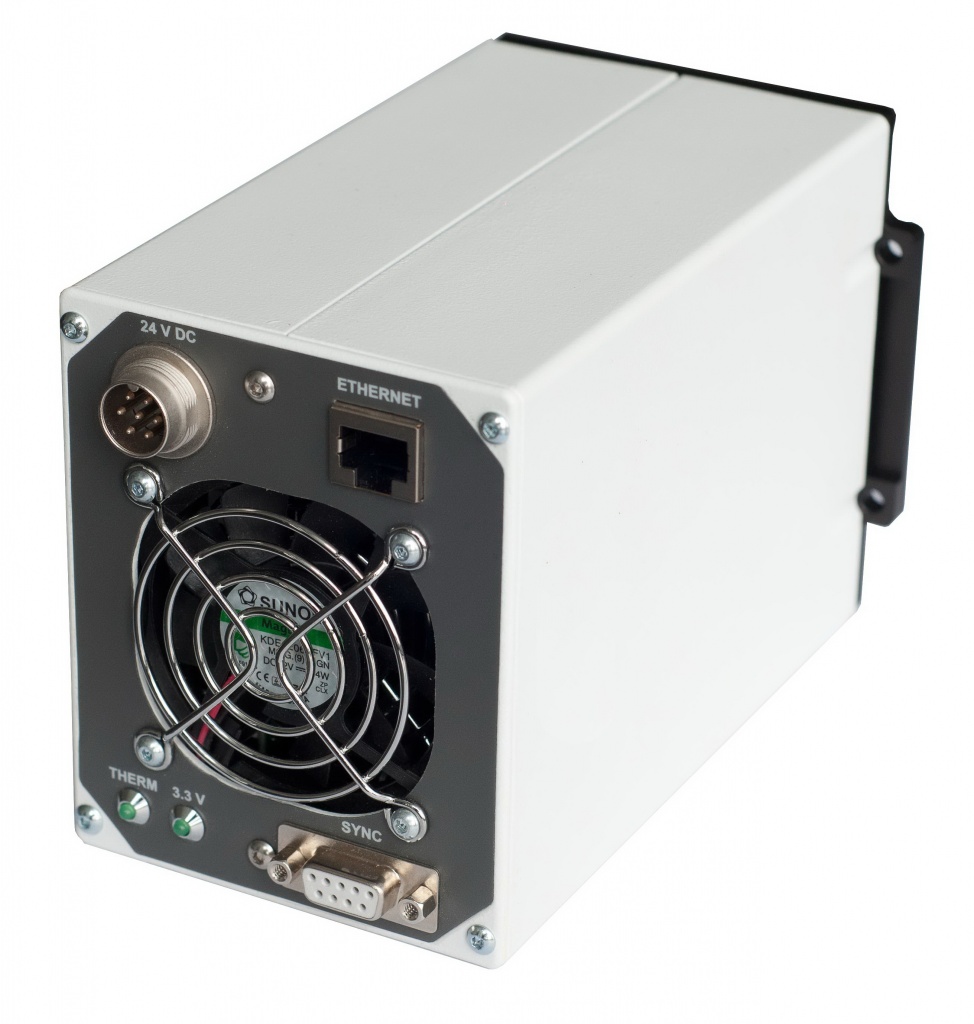

HSO 103H

Multi-element array/linear detector

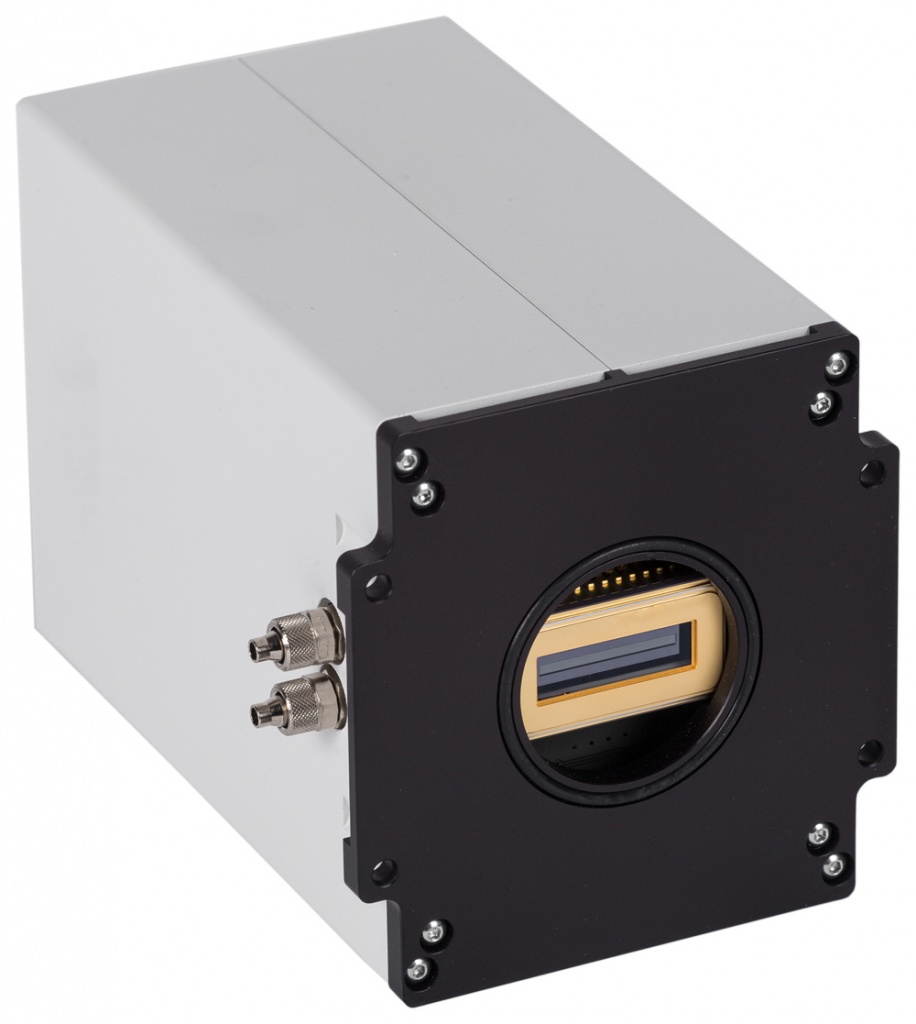

HSO 101H-HR & HSO 101H

CCD area image sensor

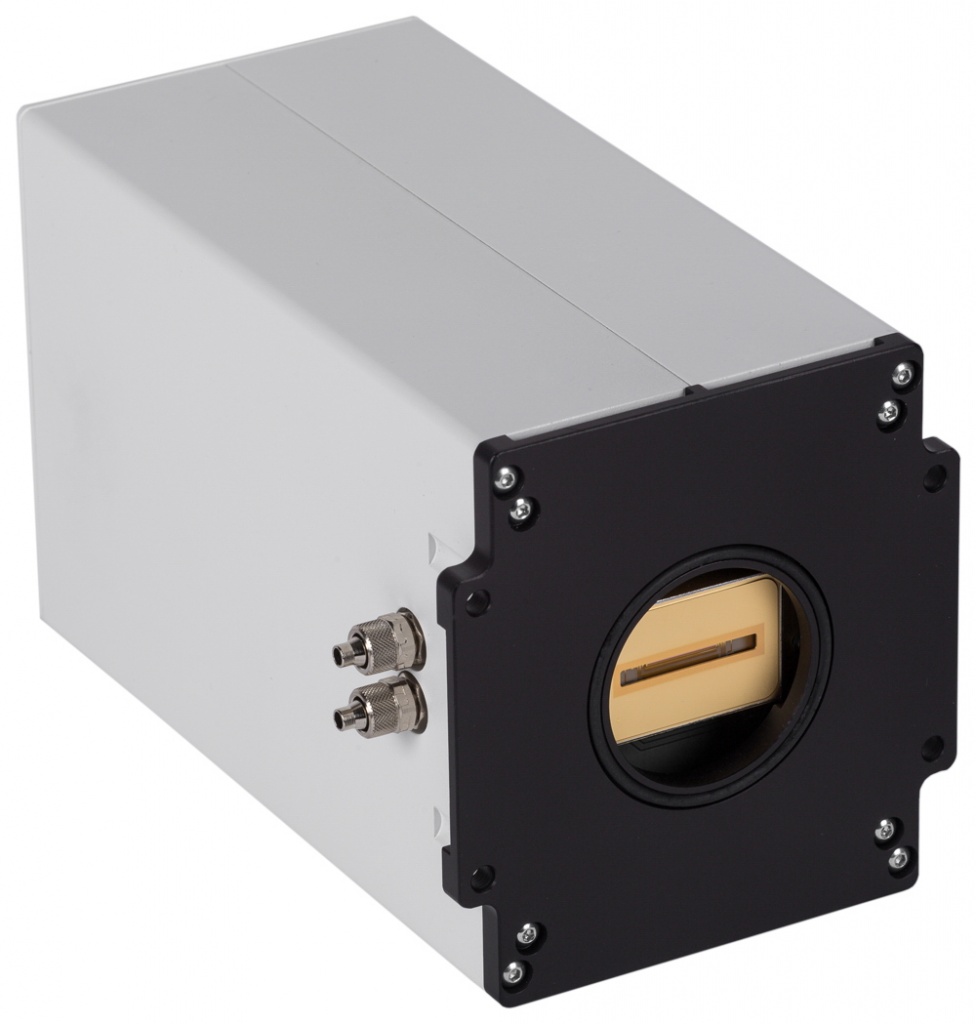

HLSO 190IR

InGaAs linear image sensor
HSO 104H
HLSO 103H HLSO 190IR  HSO 101H HR

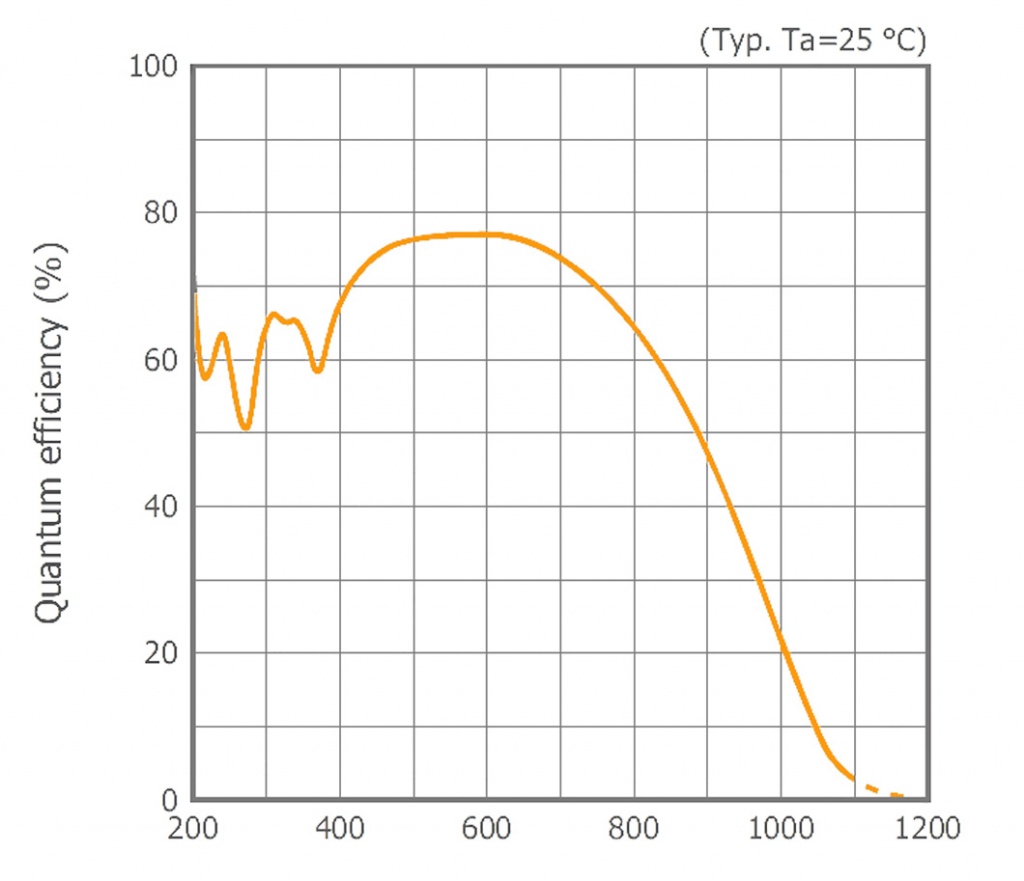

H104 graph

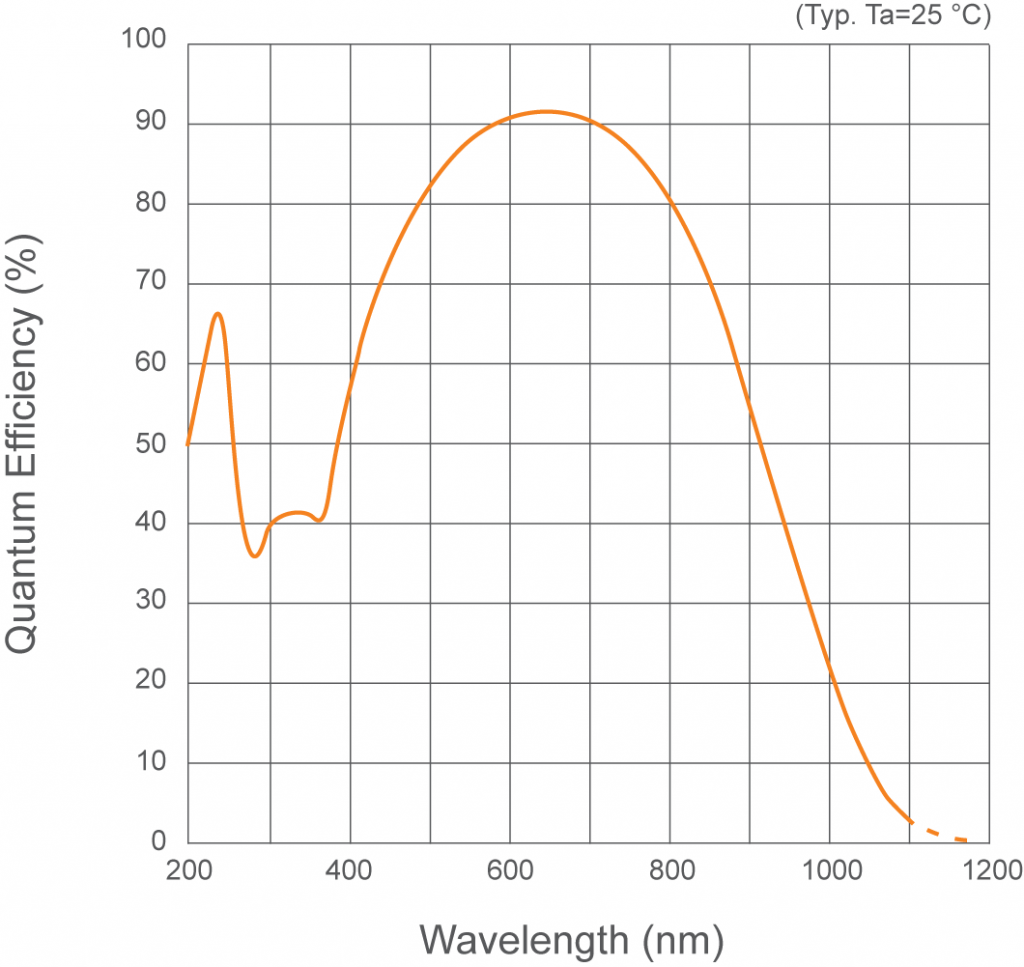

HSO 103H graph

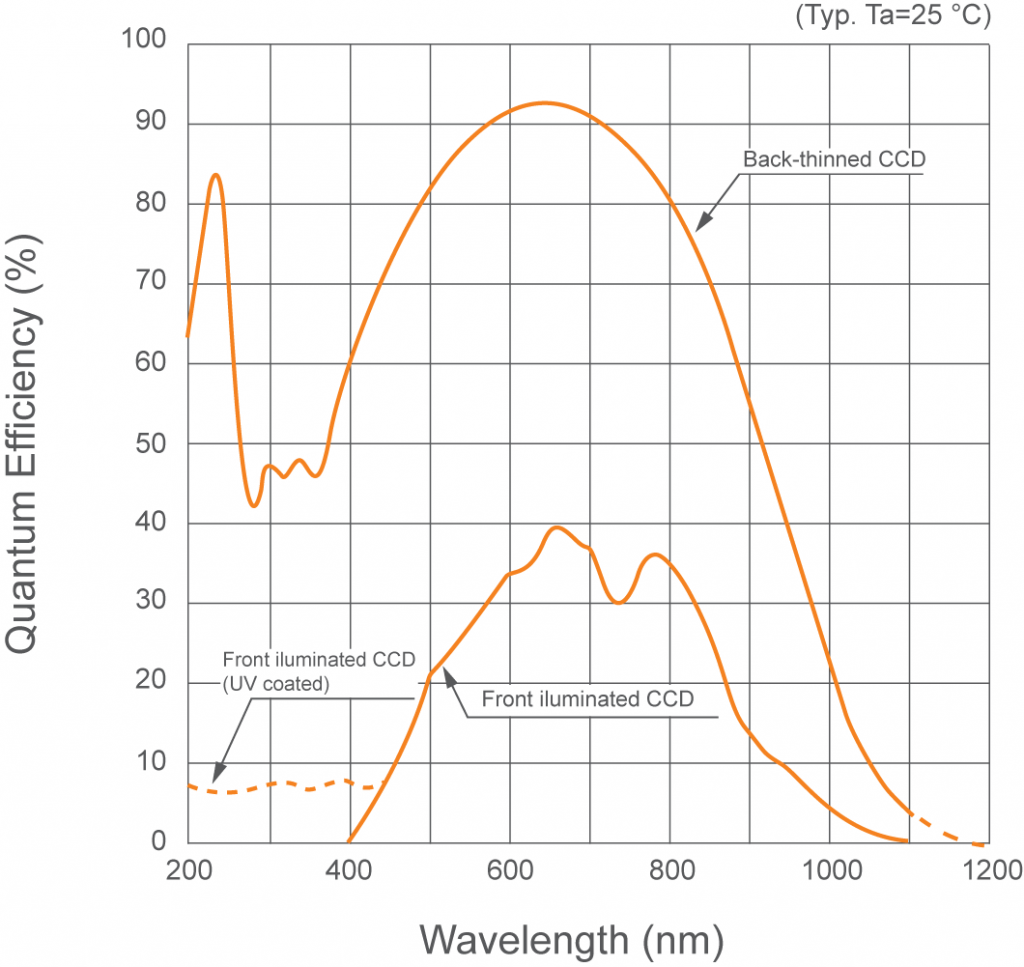

HSO 101H graph

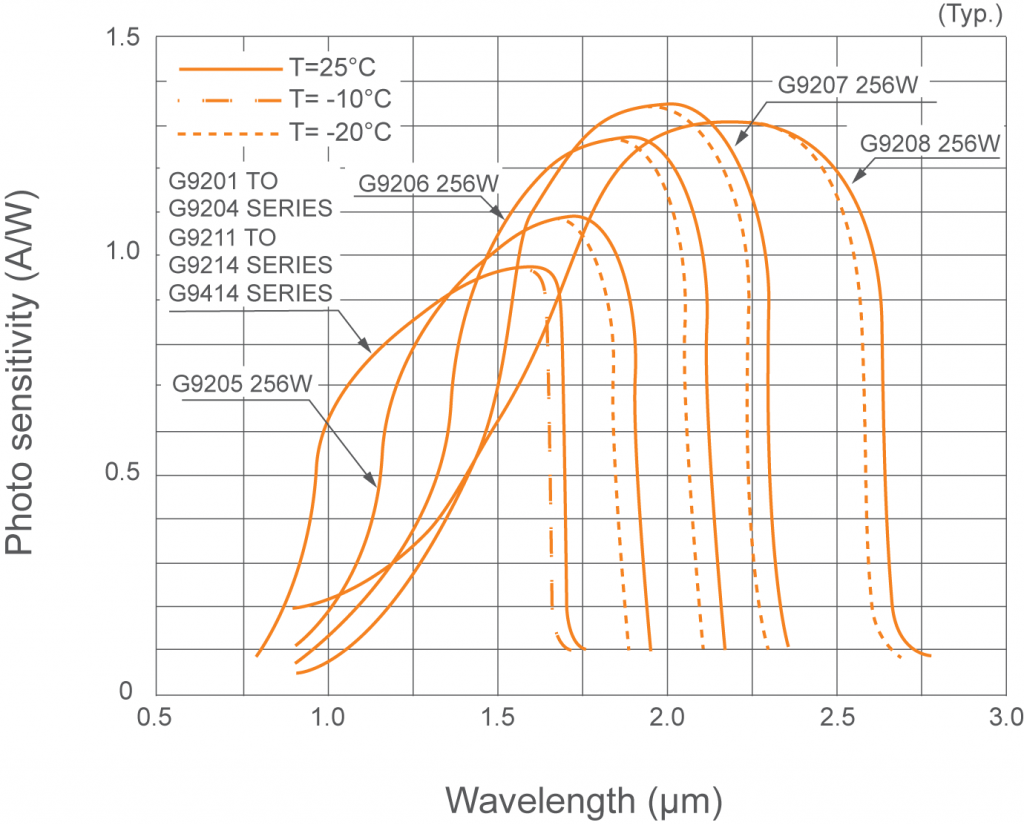

HLSO 190IR graph

SPECIFICATION



HSO 104H

HSO 103H

HSO 101H

HSO 101H-HR

HLSO 190IR

Spectral range

200 – 1100 nm
 200 – 1100 nm
 200 – 1100 nm  200 – 1100 nm  0.9 – 2.55 μm
Max. readout speed

6 MHz

 up to 500 kHz  up to 1 MHz  up to 500 kHz  up to 416 kHz
Sensor type

CCD linear area image with electronic shutter, Back-Thinned

 Back-Thinned CCD CCD area image, Back-Thinned or Front-Illuminated
CCD area image, Back-Thinned InGaAs linear image
Number of pixels

2048 х 1

 2048 х 64  from 1024 х 58
 to 1024 х 252
 from 2048 x 122
 to 2048 x 506
 from 256 x 1
to 512 x 1
Pixel size (width х height)

14 х 1000 μm or
14 x 500 μm

 14 х 14 μm  24 х 24 μm  12 х 12 μm  from 25 х 250 μm
 to 50 х 500 μm
Nominal value of the distance from a forward plane of the camera up to photosensitive field of the sensor

10 mm

10 mm

10 mm

10 mm

10 mm

Exposure time

from 2 μs to 2.795 sec
 from 10 μs to 7.5 h  from 10 μs to 7.5 h  from 10 μs to 7.5 h  from 1 μs to 7.5 h
ADC

16 bit

 16 bit   16 bit   16 bit   16 bit
Built-in thermoelectric Peltier cooling, min. T, °C

-

-  -20/-65           -40           -20
Readout noise RSM of the sensor in full Image with the maximal resolution mode

13 counts ADC

15 counts ADC

6 counts (with ADC DATEL) /
12 counts (with ADC Texas Instruments)
in full image mode
6 counts (with ADC DATEL) /
12 counts (with ADC Texas Instruments)
in full image mode

15 counts ADC

Dynamic range

not less than 5 000
not less than 7 400 not less than 10 000 not less than 13 000

not less than 5 000

Dimensions (L x D x H)

100 х 48х 105 mm

100 х 164 х 105 mm

100 x 164 x 105 mm

100 x 164 x 105 mm

100 x 164 x 105 mm

Weight

0.55 kg

1.5 kg

2.0 kg

2.0 kg

2.0 kg

Power consumption

(5 ± 0.5) V voltage
direct current (VDC)

(24 ± 5) V voltage direct current (VDC)
