OCOS single-channel detectors



SDAO 010

Silicone photodiode-based detector

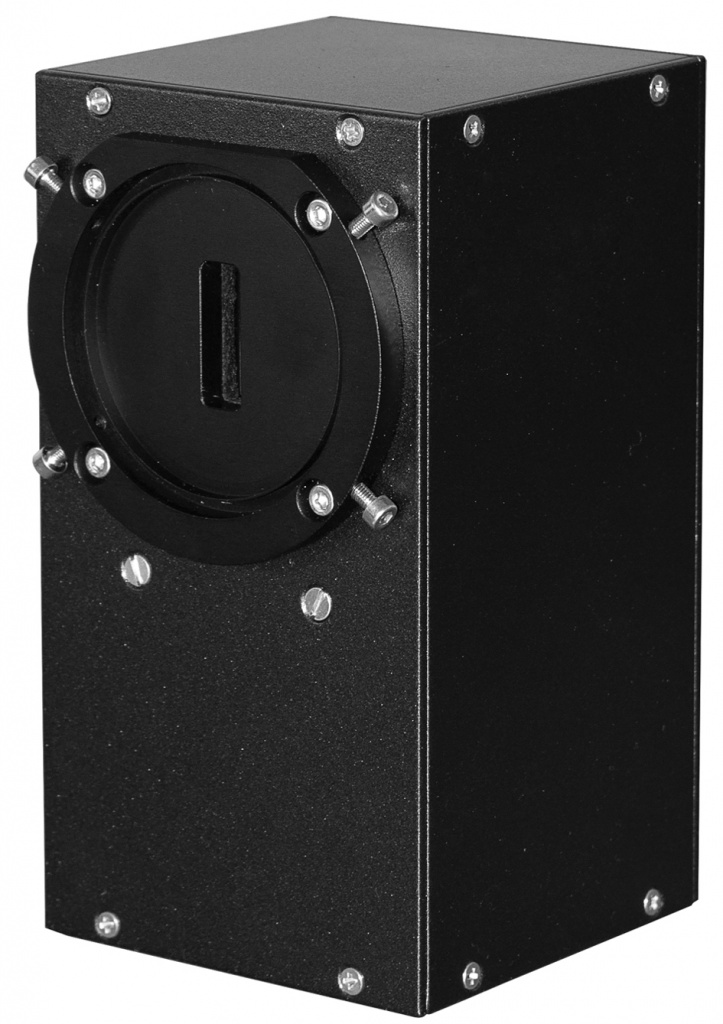

PTAO 928

PMT-based detector

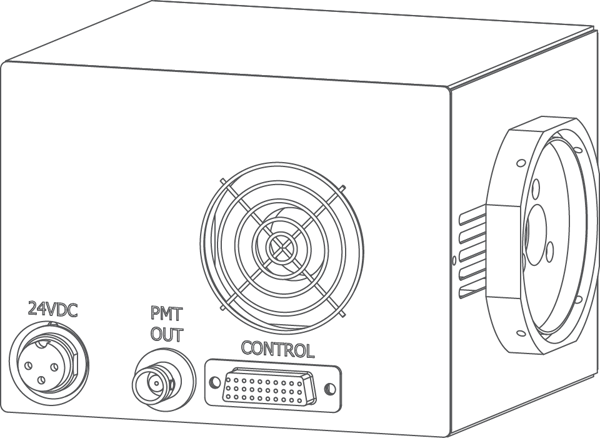

PTMO 7844

PMT-based Peltier cooled detector

SDAO 010
PTAO 928
 PTMO 7844

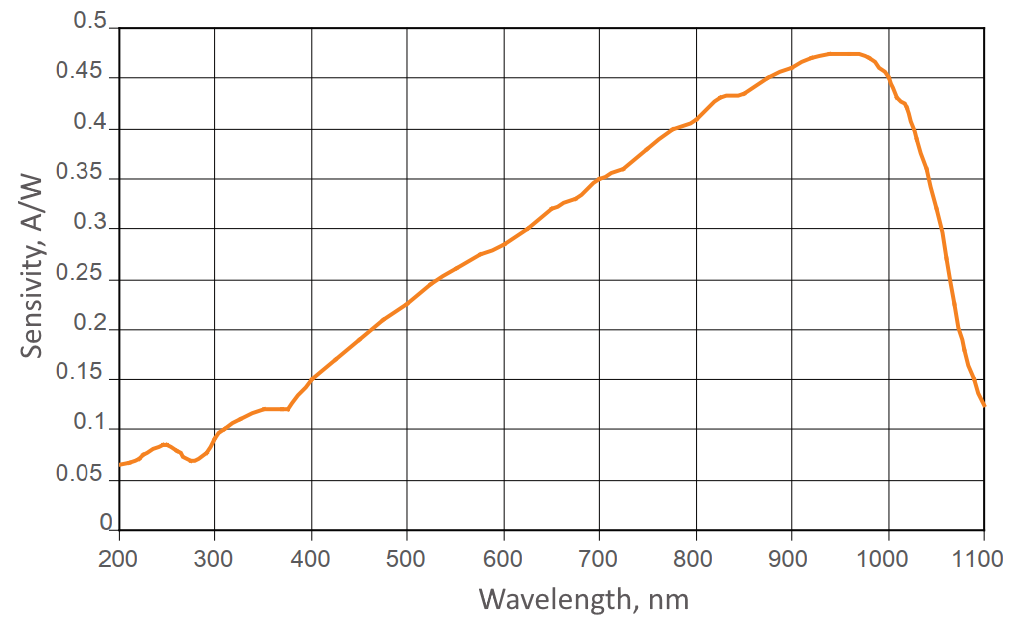

SDAO 010 graph

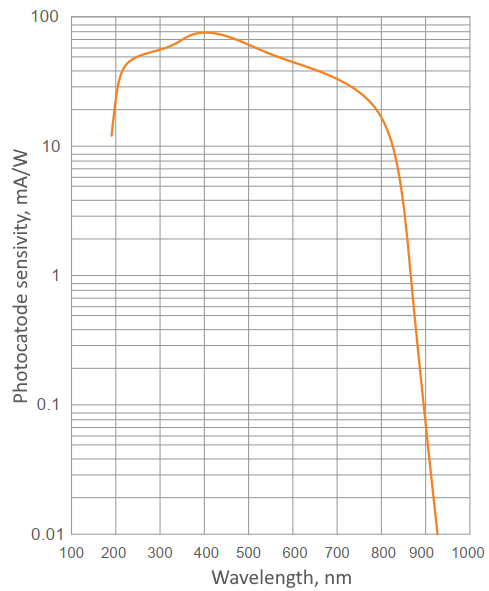

PTAO 928 graph

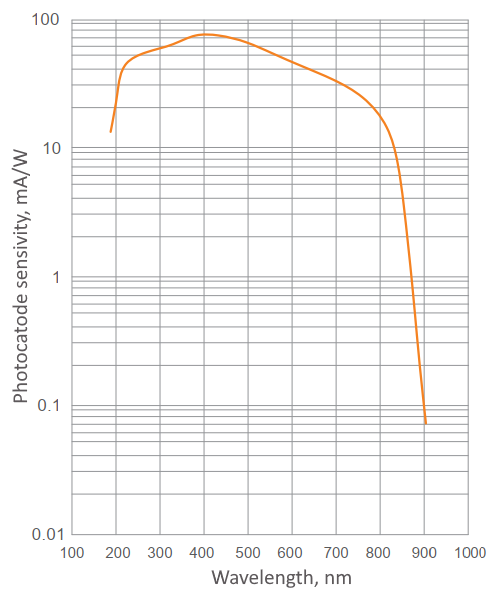

PTMO 7844 graph

SPECIFICATION



SDAO 010

PTAO 928

PTMO 7844

Spectral range  200 – 1100 nm
185 – 900 nm 185 – 900 nm
Highest sensitivity wavelength
960 nm 400 nm 400 nm
Active area    7 x 7 mm 8 x 24 mm 9 x 14 mm
Spectral sensitivity  9.5 х 105  V/W 2.2 х 1011  V/W
2.3 х 1011  V/W
Output shift voltage    50 mV 30 mV 1 mV
Max. output voltage    +5 V +5 V +5 V
Bandwidth (-3 dB) 0 – 4.5 kHz 0 – 50 kHz
0 – 50 kHz
Sensitivity adjustment magnification coefficients 1; 10; 100; 1000
from 0 to max, software-controlled from 0 to max, software-controlled
Dimensions 70 х 50 х 50 mm 90 x 80 x 150 mm 120 x 130 x 100 mm
Weight  0.3 kg 0.8 kg 1.2 kg
