On-line gas analysis in scientific investigations

Express Multi-Component Gas Analyzer GAOS MS-20-8

Process Mass Spectrometry

The MS process mass spectrometer provides real-time, fast, accurate, comprehensive gas analysis.

Operational characteristics:

  • Modular configuration, fast replacement of blocks for maintenance service and repair;

  • IP54 protective execution;

  • Continuous working 24 hours during 6 – 12 months without of servicing of vacuum system;

  • Automatic algorithm of working with the functions of diagnostics, adjustment, calibration and operative control of measurement accuracy.



Mass-spectrometer GAOS MS-20-8


Industrial Sample Conditioning Block

Depending on the analytical applications, the process mass spectrometers MS are equipped with various modifications of the Sample Conditioning System.


  • Continuous of gas probe sampling under conditions:

          Temperature up to 1200 °С;
           Dust content up to 30 g/m3;
           Pressure (10-3÷3) bar;
           Presence of a condensate, aggressive gases;
  • Step by step cleaning of the gas probe, dust, condensate removal, cooling;

  • Switching from various points of sampling and gas probe transportation on the mass spectrometer input;

  • Automatic control of the operating parameters (temperature, pressure, volume flow) and self- diagnostics of the Sample Conditioning System.

Analytical Applications


  • Basic Oxygen Steel process (converter);

  • Blast Furnace Optimization;

  • Steel Vacuum Processing (VOD, RH);

  • Air separation (analysis of blowing oxygen purity);

  • Emissions Monitoring and Pilot Plant Gas Analysis for non- ferrous metallurgy.


  • Mud Gas Logging;

  • Isotope Analysis;

  • Gas Measuring;

  • Fluid Inclusions Gas Analysis (geochemistry investigations).


  • LNG production;

  • Natural gas processing;

  • Hydro-cracking process;

  • High-temperature cracking furnace optimization;

  • Process of the catalyst regeneration;

  • The chemical analysis of technological gases: recycle hydrogen, fuel, inert.


  • Chemical and isotope analysis of H2-He-T2 fuel gas mixtures (International project "ITER" - experimental thermonuclear reactor);

  • Chemical and isotope analysis of gas phase of the fuel elements cover;

  • Monitoring of hydrogen and other gases migration during the atomic reactor stress testing.


  • He, Ne, Ar, Kr, Xe, H2, N2, O2


  • Plasma gasification of the solid waste with the reception of synthesis-gas for power and chemical industry;

  • Optimize hydrogen reformer and catalyst efficiency for fuel cell development and testing.


  • Monitoring of the gas phase for thermal, thermogravimetric analysis;

  • The elemental analysis (C, N, O), quantity determination of the dissolved gases in metals;

  • Pilot plant gas analysis of the metallurgical processes.


Thermogravimetric Analysis


Thermal analysis methods are widely used to characterize the thermophysical properties, structure and stability of various substances and materials. Thermogravimetric analysis is particularly widely used, in which the weight loss of a sample is recorded continuously during programmed heating.

Thermogravimetric analysis is a recognized test method for the production of polymeric materials in the chemical industry, in the pharmaceutical industry, and is also used to study the properties of ceramic materials, minerals and metals, food products, adhesives, varnishes, and paints.

The most powerful analytical tool for scientific research in thermogravimetry is TG-DTA/DSC synchronous analysis systems in combination with a mass spectrometer for monitoring the composition of the gas phase.

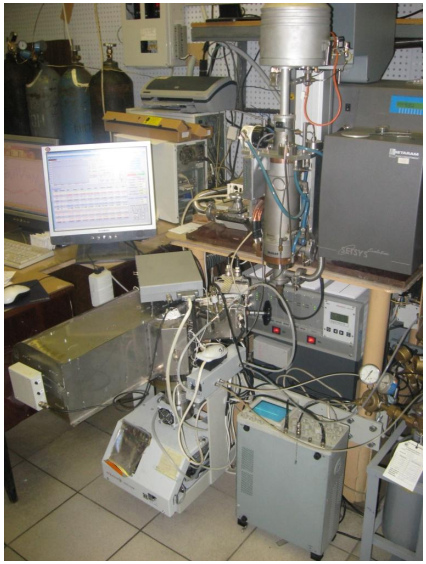

Gas analysis by the GAOS MS-20-8 mass-spectrometer at the thermogravimetric analysis. The installation of TG-DTA/DSC analysis «Setsys Evolution», SETARAM, France, Institute «Gipronickel», Saint-Petersburg, «MMC «Norilsky nickel».

In a synchronous analysis of TG-DTA/DSC, the change in heat flux and sample mass is measured simultaneously depending on temperature and time in a controlled atmosphere. This method of thermogravimetric analysis not only increases the performance of measurements but also simplifies the interpretation of results, due to the ability to separate processes with different thermal effects (positive or negative) that are not accompanied by a change in weight (for example, phase transitions) from which a change in weight occurs (for example, desorption degradation).

Analysis of gases by the method of mass spectrometry (MS) allows us to obtain more detailed information on the composition and thermophysical properties of the samples under study and to reliably interpret the measurement results.

The sample during thermogravimetric analysis (TGA) is in a given as controlled conditions, and the environment (heating rate, gas atmosphere, volumetric flow rate, etc.). The TGA method in combination with a mass spectrometry system for gas analysis is used, for example, to quantify the composition of a polymer composition or any mixtures. Weight loss in an inert gas atmosphere, for example, may result from the release of chemically or physically bound water (drying behavior). The selection of solvents and plasticizers or decomposition of polymers is divided in time depending on its thermal stability. After switching the atmosphere of inert gas to an oxidizing atmosphere (air, oxygen), the added soot, for example, burns to carbon dioxide. Inorganic additives, such as talc or fiberglass, in the temperature range up to 1000 °C form a residue in the form of ash.

Studies in synchronous analysis of TG-DTA / DSC in combination with MS:


  • allocation of water

  • stability

  • residual solvent

  • pyrolysis

Composite materials analysis

  • composition of polymers

  • technical analysis

  • burning out of the binding

  • destruction of paraffin

  • definition of the ashes rest

Heterogeneous reactions solid-gas

  • combustion

  • oxidation

  • corrosion

  • adsorption

  • desorption


  • composition of gas mixtures

  • under the mass spectrum form ("A fingerprint" method)

  • partial pressure

  • fragments

  • reactions gas-solid phase

Specialized mass spectrometer GAOS MS-20-8 for scientific research in the installation of thermogravimetric analysis has a high-temperature (up to 450 °C) sample gas input, automatic tuning of the mass spectrum and the choice of analytical spectral lines: 16 analytical lines in analog and 16 in the counting modes work registration system.

The components are determined by a mass spectrometer for research on the development of new technologies, optimization of the parameters of technological processes of copper-nickel production at the “MMC “Norilsk Nickel”:

H2, N2, O2, CO, Ar, SO2, H2S, CH4, NH3, COS, CS2

Range of measured concentration: 0,0001÷100 % vol.,

minimum reached detection limit – 0,01 ppm.

Before scientific studies, the TG-DTA / DSC system and mass spectrometric gas analysis are tested using standard samples with known chemical composition and thermal physical properties. The obtained gas analysis data are compared with reference values using the balance method.

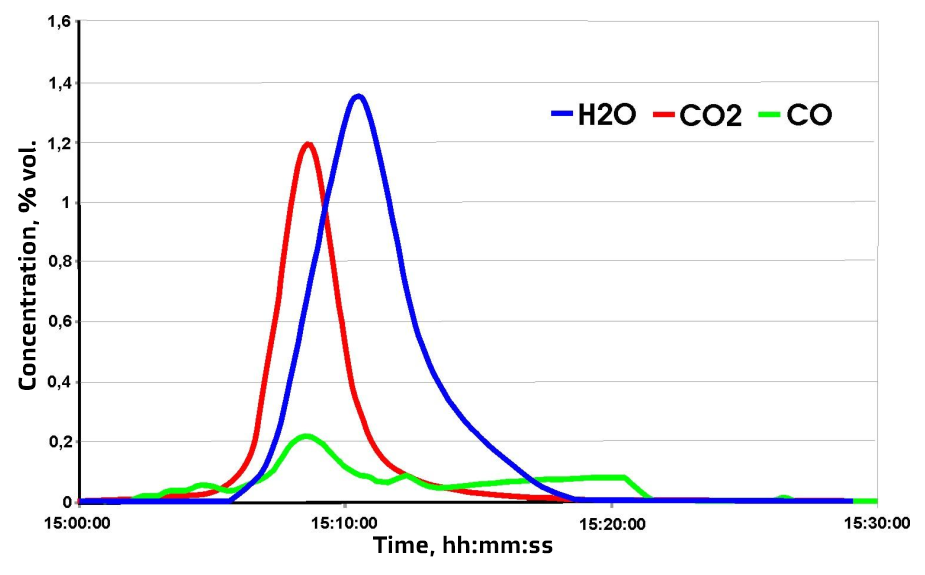

The time diagram of the gas analysis of a reference sample of the copper-nickel concentrate. The GAOS MS-20-8 mass spectrometer.
