ASTM E2412 – 10(2018) Standard Practice for Condition Monitoring of In-Service Lubricants by Trend Analysis Using Fourier Transform Infrared (FT-IR) Spectrometry
The method of differential IR Fourier Spectrometry (analysis of working oil sample spectra as compared to the new oil sample spectra) allows to quickly control the state of engine oils in the process of operation.
Oils change their properties under the influence of loads, high temperatures and as a result of equipment wear – there is a depletion of additives, oxidation of basic components, water and fuel pollution, the accumulation of nitrogen and sulfur oxides. Negative changes in operating parameters of oils and greases lead to equipment failures.

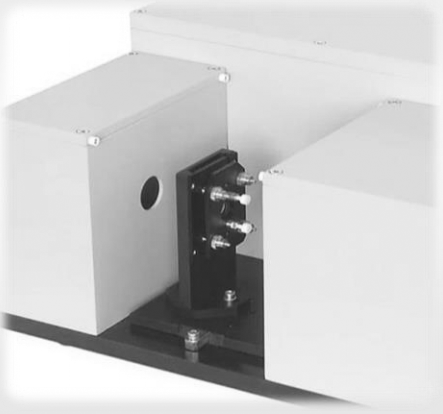

IROS P01 IR Fourier spectrometer with liquid cell and
POilSpec software, with built-in graduation, allows to perform express analysis of working oil samples according to
ASTM E2412 – 10 standard.
|
The POilSpec software with an interactive interface controls the entire analysis process:
|

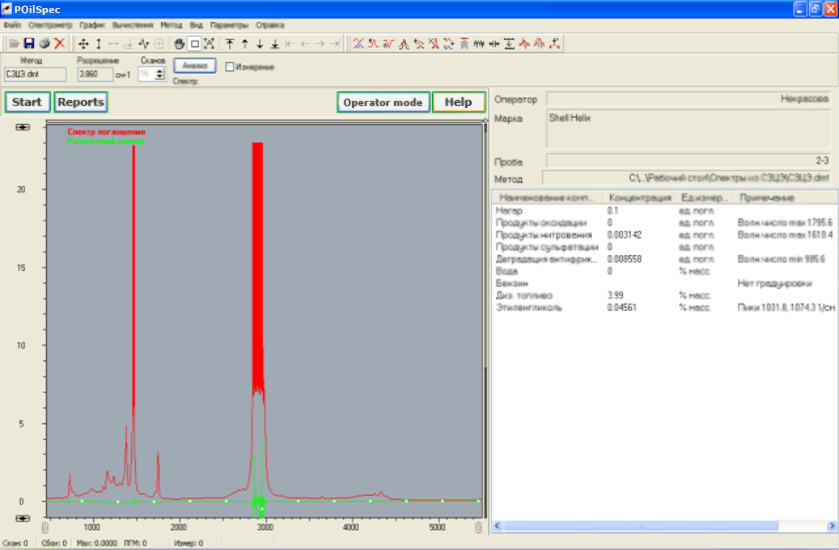

POilSpec software. Engine oil parameter monitoring
|
Defined parameters of engine oils
Parameter
|
Spectral range, cm-1
|
Ethylene glycol
|
1 100 – 1 030
|
Water
|
3 500 – 3 150
|
Fuel (diesel)
|
815 – 805
|
Fuel (gasoline)
|
755 – 745
|
Nitrogen oxides
|
1 650 – 1 600
|
Sulfated products
|
1 180 – 1 120
|
Oxidation products
|
1 800 – 1 670
|
Soot products
|
2 000
|
Additive components
|
1 025 – 960
|
|
Features
- Automation of measurements, including the functions of initial testing and self-diagnostics during operation of the spectrometer
-
Automatic calculation of oil parameters from the built-in calibration model
|
Specification and technical data
IROS P01 IR Fourier spectrometer
- Self-compensating Mickelson interferometer, no dynamic alignment required, gold plated mirrors
- Sealed placement of optical elements
- Waterproof design of the beam splitter and KBr optical windows
- Large-sized cell compartment
|
Spectral range
|
7 800 – 370 cm-1
|
Spectral resolution
|
1.0 cm-1
|
Cell compartment dimensions, mm
|
200 × 190 × 170
|
Dimensions, mm
|
520 × 370 × 250
|
Weight, kg
|
28
|
Cells and accessories
- Demountable cell for liquid samples with spacer set
- Window material – KBr. Optical path length – 0.1; 0.2; 0.3; 0.5; 0.8 mm.
- Easy assembly-disassembly of the cell, quick replacement of windows and spacers
- Minimum sample volume – 0.2 ml
-
Syringe for filling the cell with sample
Software
PFSpec is a basic software for IROS P series FTIR spectrometers.
Obtaining, analysis and processing of spectra, spectrometer testing. Windows XP/Vista/7/10 compatible.
POilSpec is a software for monitoring the condition of oils in operation.
Automatic calculation of oil parameters by the built-in calibration model.
|
IROS P01 FTIR spectrometer
#52298-12 in the State Register of Measuring Instruments of the Russian Federation
|
