Specification


Main technical parameters of typical probes are listed below.
Other configurations and customized probes can be produced on request.


General parameters


Standard probes

High temperature probes

Sterilizable probes

Probes for lab applications

Loop probes

Total length

1.5 m (opt. from 1 m to 5 m)

1 m (opt. PIR up to 5 m, CIR up to 10 m)

Shaft length

300 mm (opt. 100–700 mm)

150 mm (opt. 100–500 mm)

120 mm

Shaft diameter

12 mm, 6.3 mm, (opt. 3 mm)

12 mm

12 mm, 6.3 mm, (opt. 3 mm)

6.3 mm

10 mm

Shaft material

Hastelloy C22

PEEK (polyetheretherketone)

PEEK

Length of legs

500 mm (opt. 200–500 mm)

Protective tube material

Liquid Tight SS-Conduit, KOPEX-Tube

PEEK

Minimal bending radius

130 mm

Input/Output connectors

Long SMA (opt. any other type)

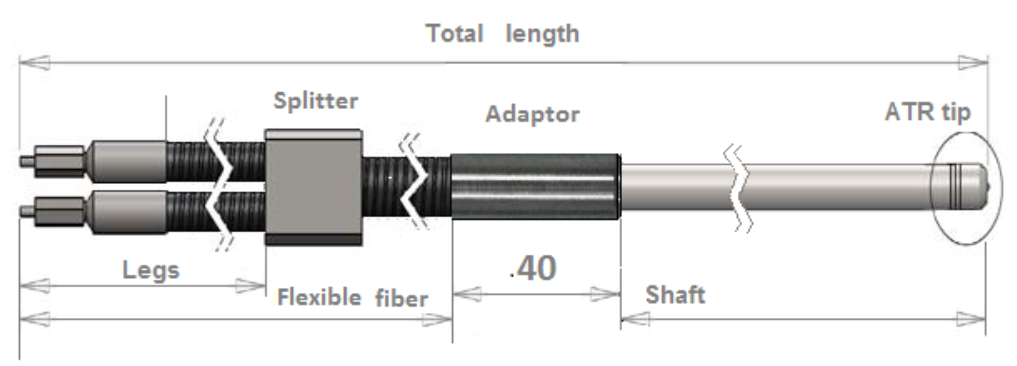

Standard ATR probes
Standard ATR probes
Sterilizable ATR probes

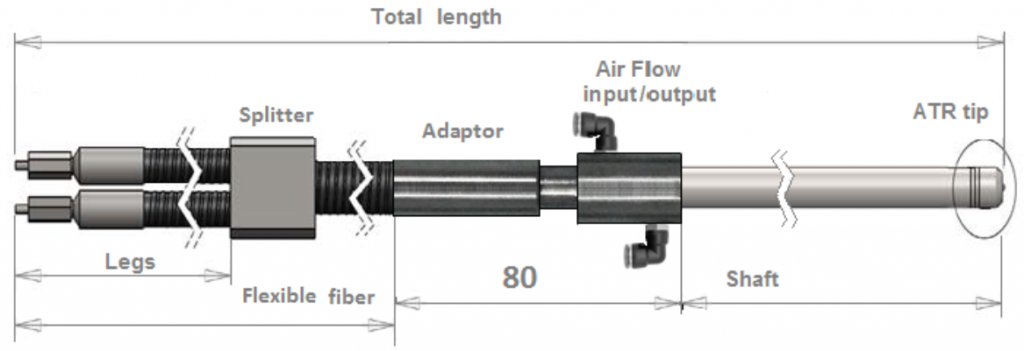

High-temperature ATR probes
High-temperature ATR probes

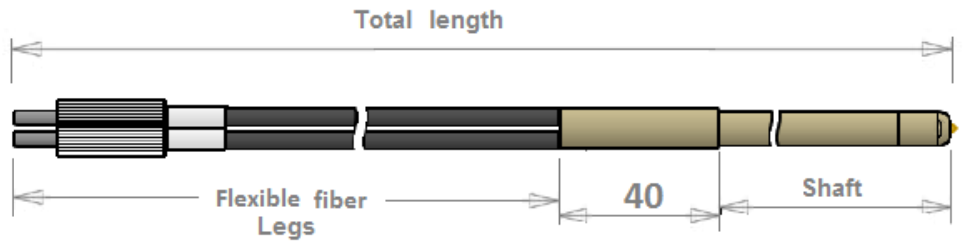

Laboratory ATR probes
Laboratory ATR probes

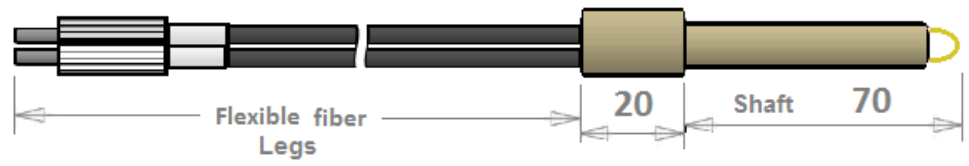

Detachable loop ATR probes
Detachable loop ATR probes

ATR crystals selection


Material of the tip

Angle at the top

Refractive index

Number of reflections

Spectral range

Chemical resistance

Mechanical strength/ Durability

Diamond tip
Diamond

90º

2.4

2

600 – 1 900 cm-1

Highest

Сan be used in any liquid

Ultimate

ZnSe tip
ZnSe

90º

2.4

2

600 – 3 100 cm-1

pH range: 5 – 9

Complexing agents (ammonia and EDTA) will also erode surface

Low

Si & Ge tips
Si & Ge

120º

Si – 3.4

Ge – 4

2

600 – 3 100 cm-1

Si: pH range 0 – 10

Ge: pH range 1 – 12

Moderate

Moderate

ZrO2 tip
ZrO2

60º

1.9

3

1 550 – 9 000 cm-1

pH range: 0 – 14

Do not use with strong acids and alkalis

High

Detachable loops
Detachable loops

Not defined

2.1

Multiple

600 – 2 500 cm-1 or 1 550 – 6 500 cm-1

depending on fiber in probe

pH range: 5 – 9

Complexing agents and SO-2 ions will also erode surface

Low


Specification


PIR fiber 900/1000, 30 cm shaft Hastelloy C22, 150 cm total, LTP conduit with SMA 905 connectors
PIR fiber 900/1000, 15 cm shaft PEEK, 150 cm total, PEEK protective tubing with SMA 905 connectors
PIR fiber 900/1000, 30 cm shaft Hastelloy C22, 200 cm total, LTP conduit with SMA 905 connectors, airflow cooling
PIR fiber 900/1000, 30 cm shaft Hastelloy C22, 150 cm total, LTP conduit with SMA 905 connectors, detachable fiber

Type

Standard

PEEK Lab

High temperature

Sterilizable

Shaft ∅

6.3 mm

12 mm

6.3 mm

12 mm

6.3 mm

12 mm

ATR crystal

Diamond,

600 – 1900 cm-1

200 Bar

-150ºС +140ºС

200 Bar

-150ºС +140ºС


200 Bar

-150ºС +250ºС

200 Bar

-150ºС +140ºС

200 Bar

-150ºС +140ºС

Si,

600 – 3100 cm-1

100 Bar

-150ºС +140ºС

100 Bar

-150ºС +140ºС

7 Bar

-100ºС +140ºС

100 Bar

-150ºС +250ºС

100 Bar

-150ºС +140ºС

100 Bar

-150ºС +140ºС

Ge,

600 – 3100 cm-1

10 Bar

-150ºС +80ºС

10 Bar

-150ºС +80ºС

7 Bar

-100ºС +80ºС

10 Bar

-150ºС +80ºС

10 Bar

-150ºС +80ºС

ZnSe,

600 – 3100 cm-1

10 Bar

-150ºС +140ºС

7 Bar

-100ºС +140ºС

10 Bar

-150ºС +250ºС



ZrO2 with CIR 500/550 fiber,

1550 – 9000 cm-1

100 Bar

-150ºС +90ºС

100 Bar

-150ºС +90ºС

7 Bar

-100ºС +90ºС

100 Bar

-150ºС +200ºС

100 Bar

-150ºС +90ºС

100 Bar

-150ºС +90ºС

Detachable loop

PIR fiber 900/1000, 10 cm shaft PEEK, 110 cm total, PEEK tubing with SMA 905 connectors, 600 – 2 500 cm-1,

-50ºС +90 ºС, Disposable ATR loop tip

CIR fiber 500/550, 10 cm shaft PEEK, 110 cm total, PEEK tubing with SMA 905 connectors, 1 550 – 6 500 cm-1,

-50ºС +90ºС, Disposable ATR loop tip
