IR M3 features


  • Fully automatic Iris and rectangular apertures

  • 4x, 10x, 36x, 60x interchangeable visible objectives

  • Advanced built-in control panel

  • Automatic mapping system (motorized sample stage with autofocus system)

  • Special software for microscope control and results processing

  • Slider ATR attachment

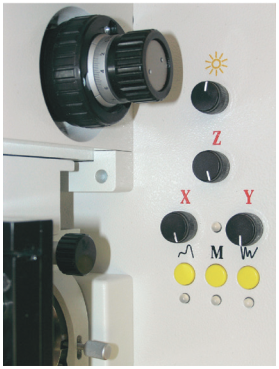

Built-in control panel allows to manage spectra registration process, photometric area observation (using binocular), quick sample change, sample stage manipulation and brightness illumination adjustment simultaneously.



Mapping using IR M3 microscope


Motorized sample stage with autofocus system allows to receive sample spectrum map in automatic mode.

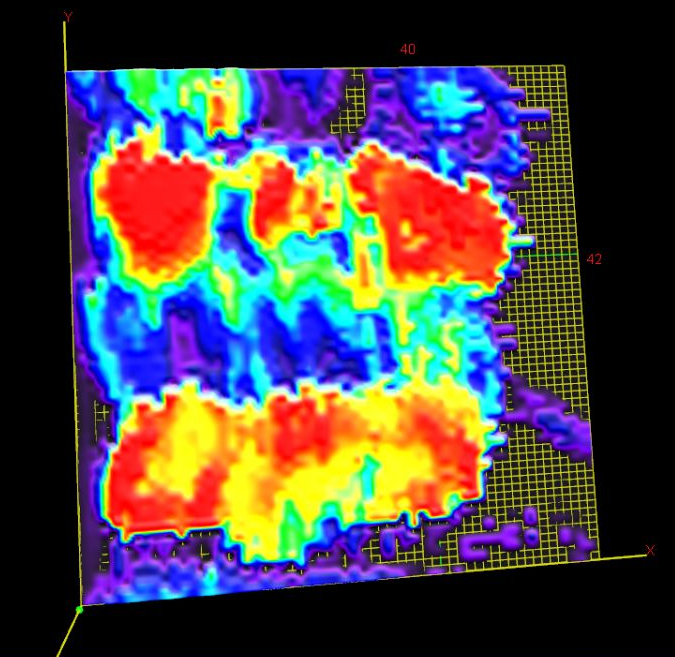

6.png IR M3 mapping

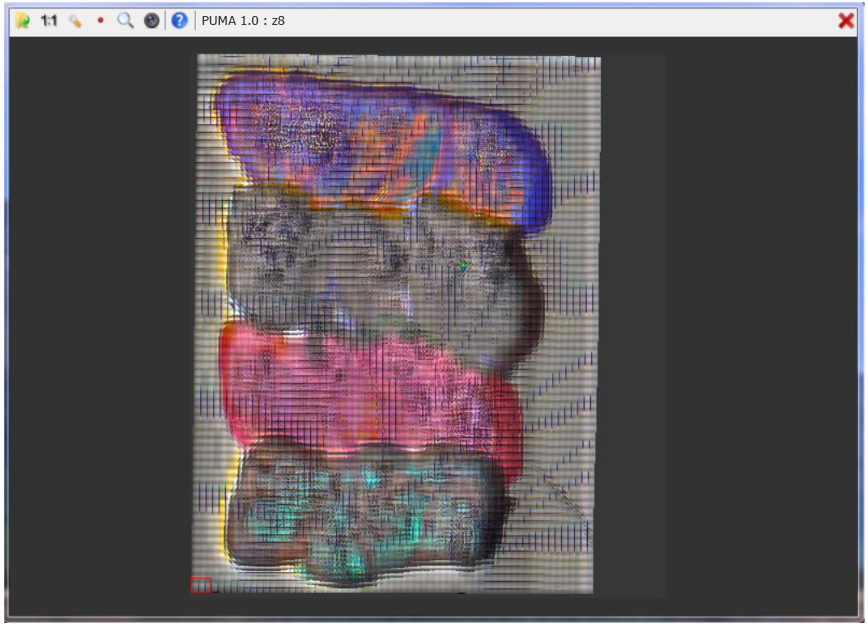

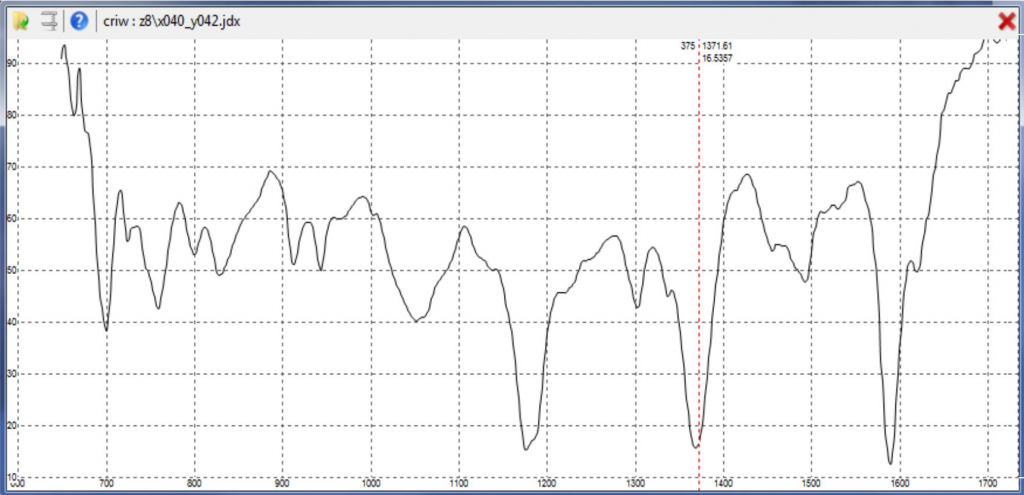

IR spectrum of office marker pens strokes with various chemical compositions

IR spectrum of office marker pens strokes with various chemical compositions

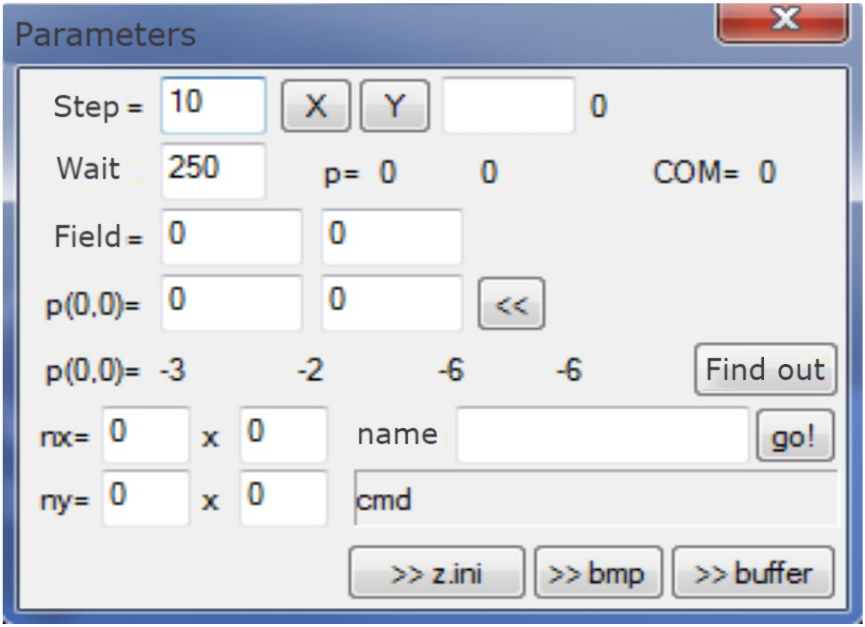

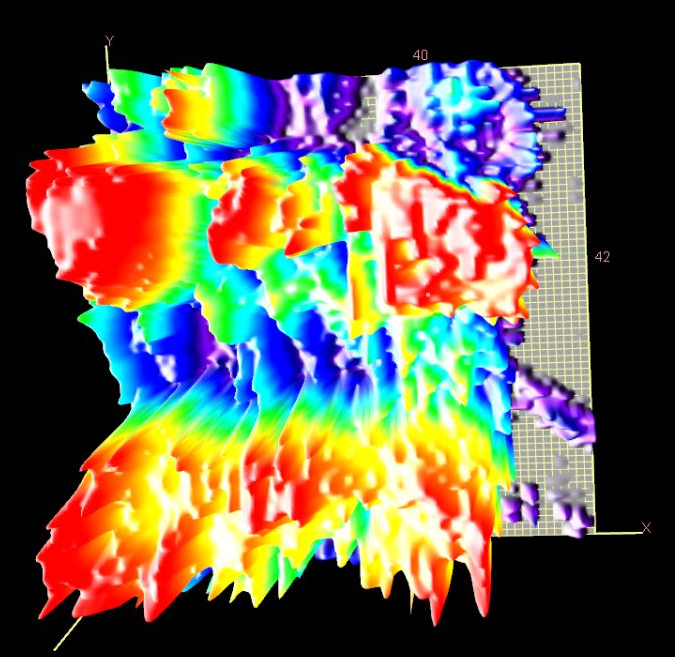

“Spectral map” shows impurities concentration at different points of a sample in the form of relief or color gradations IR M3 Software Parameters window

“Spectral map” shows impurities concentration at different points of a sample in the form of relief or color gradations.
