Available option: 4 isolators in the system |
Total available load: 1 200 kg |
| Patented architecture | Highly damped step respond |
|
Active vibration control bandwidth 0.5 – 100 Hz |
|
|
Active vibration isolation in all 6 degrees of freedom |
|
|
Power and communication box for centralized control |
Simple installation – No tuning requires |
|
Load per single isolator 100 – 300 kg |
Single isolator dimensions 270 x 230 x 75 mm |
|
Application-specific designs/products/capabilities to meet your needs |
|
|
Ability to support massive machines, tools, systems |
|

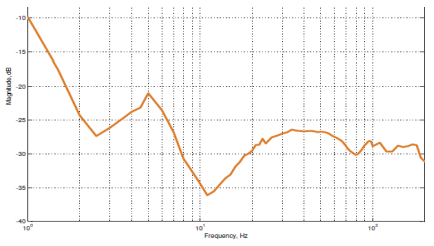

Transmissibility charts |
|
|
Vertical |
Horizontal |
 |
 |
| Available option: 4 isolators in the system | Total available load: 2 000 kg |
| Available option: 8 isolators in the system | Total available load: 4 000 kg |
| Patented architecture | Highly damped step respond |
|
Active vibration control bandwidth 0.5 – 100 Hz |
|
|
Active vibration isolation in all 6 degrees of freedom |
|
|
Power and communication box for centralized control |
Simple installation – No tuning requires |
|
Load per single isolator 200 – 500 kg |
Single isolator dimensions 270 x 230 x 75 mm |
|
Application-specific designs/products/capabilities to meet your needs |
|
|
Ability to support massive machines, tools, systems |
|

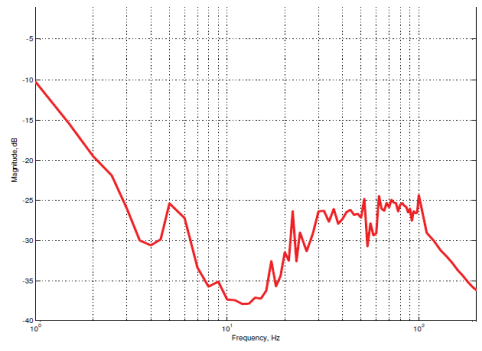

Transmissibility charts |
|
|
Vertical |
Horizontal |
|
|
|
